New Compact Time-of-Flight 3D LiDAR Module with High-resolution Spatial Awareness

The VL53L9 offers resolution of 2.3K zones, wide field of view, on-chip processing, 100 frames per second, and sensing range from 5cm to 9m.

STMicroelectronics has released the VL53L9, a compact direct Time-of-Flight 3D LiDAR all-in-one module that sets a new benchmark in high-resolution sensing. The VL53L9 combines state-of-the-art features in a compact and cost-effective package, delivering AI-ready output data for low-compute edge AI systems on small microcontrollers (MCUs) and high-performance sensing across a wide range of applications across robotics, industrial automation, smart buildings, AR/VR, and healthcare.

“VL53L9 demonstrates how far Time-of-Flight sensing has evolved, combining high-resolution depth data, up to 100 frames per second, and a fully integrated architecture in a single compact module. By simplifying integration and reducing system complexity, we enable customers to accelerate the development of applications such as robotics, smart infrastructure, and healthcare monitoring,” said Alexandre Balmefrezol, Executive Vice President and General Manager of the Imaging Sub-Group at STMicroelectronics. “This launch reflects our strategy to move beyond standalone sensors and deliver integrated sensing systems that support real-world edge AI.”

The VL53L9 offers an unprecedented 2,268 resolution zones (54x42) with a wide 54°x42° field of view, enabling detailed 3D depth mapping and precise detection of small objects, contours, and edges. Leveraging ST’s proprietary stacked BSI SPAD sensor technology and innovative metasurface optical elements (MOE), the module delivers fast and accurate ranging from less than 5 cm up to 9 meters with up to 1% accuracy and a frame rate of 100 frames per second.

The VL53L9’s dual-scan flood illumination replaces traditional dot scanning, reducing motion artifacts, eliminating dead zones, improving small-object detection, and capturing complementary 2D infrared and 3D depth images. Compared to competition, this greatly simplifies post-processing and enables a broad range of edge AI use cases to run efficiently on small MCUs with low compute requirements. The all-in-one module further integrates on-chip dToF processing, a dedicated power management IC, and is fully calibration-free, simplifying integration and reducing system cost and complexity.

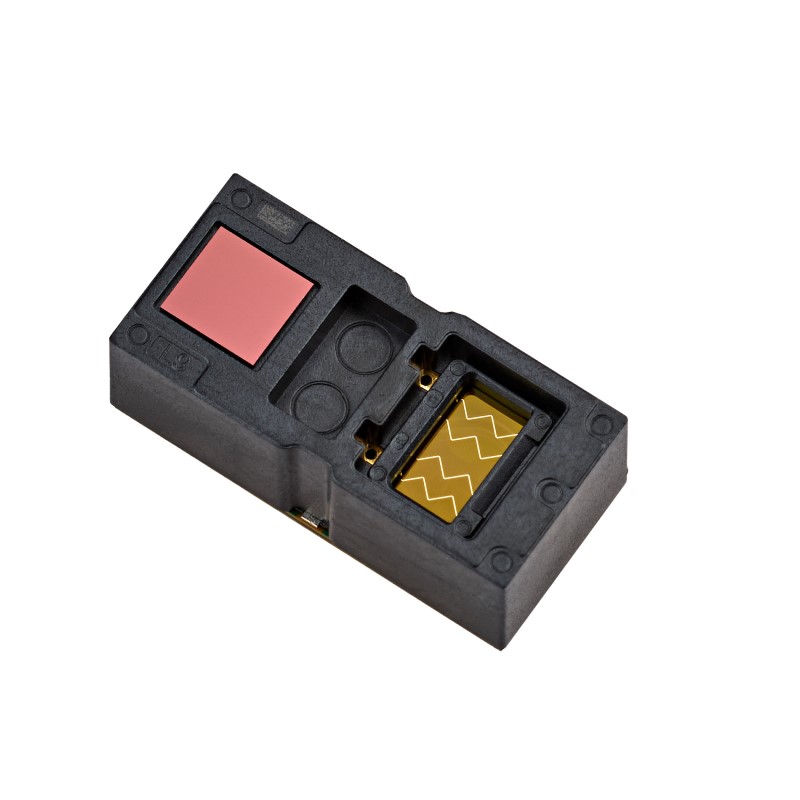

Measuring just 12.8 mm x 6.1 mm x 4.6 mm, the VL53L9 is a reflowable, single-component module compatible with a wide range of cover glass materials. It supports dual power supply operation (1.2 V and 3.3 V) and outputs data via MIPI or I3C interfaces, ensuring compatibility with diverse CPU architectures. The module is certified as Class 1 laser safe, providing reliable and secure operation for end users.

Features of the VL53L9CX 3D All-in-One LiDAR dToF Sensor include:

More information on the 3D All-in-One LiDAR dToF Sensor is available on the ST website at STMicroelectronics VL53L9CX product page.

The STMicroelectronics website address is www.st.com
[Reprinted with kind permission from STMicroelectronics - Release Date, 22nd June, 2026]
