Microchip's New ATtiny1617 Series of AVR Microcontrollers


New Microcontrollers Feature Core Independent Peripherals and Larger Memory


Microchip has further expanded its AVR® microcontroller (MCU) portfolio by adding three new devices to the tinyAVR® MCU family. The new ATtiny1617 series of MCUs expand the range of AVR devices that feature Core Independent Peripherals (CIPs), which help increase system throughput while lowering overall power consumption. The new devices extend the memory offering for these next generation tinyAVR MCUs with new 16 KB Flash options, while remaining pin and code compatible with the recently released ATtiny817 series devices. Furthermore, all members of the family are supported by Atmel START, an online tool for intuitive graphical configuration of embedded software projects.

Click for Larger Image - Microchip Releases New ATtiny1617 Series of Microcontrollers

The new MCUs offer 16 KB Flash, 256 B EEPROM, and 2 KB RAM in 14-, 20-, and 24-pin packages. The devices contain key features of other tinyAVR MCUs including the Event System Controller, which allows peripherals to communicate without using the Central Processing Unit (CPU) and enables designers to customize the configuration of the MCU for their specific application. The on-chip Peripheral Touch Controller (PTC) simplifies the development of capacitive touch systems. Other integrated features include: a 20 MHz internal oscillator, high-speed serial communication with USART, SPI, and I²C, configurable custom logic blocks, a 10-bit Analog-to-Digital Converter (ADC) with internal voltage references, operating voltages ranging from 1.8 V to 5.5 V, and picoPower® technology for sleep currents as low as 100 nA.

“There is more growth and innovation in the AVR MCU portfolio now than at any point in the past decade,” said Steve Drehobl, vice president of Microchip’s 8-bit MCU division. “Microchip is committed to continue the AVR MCU family of products.”

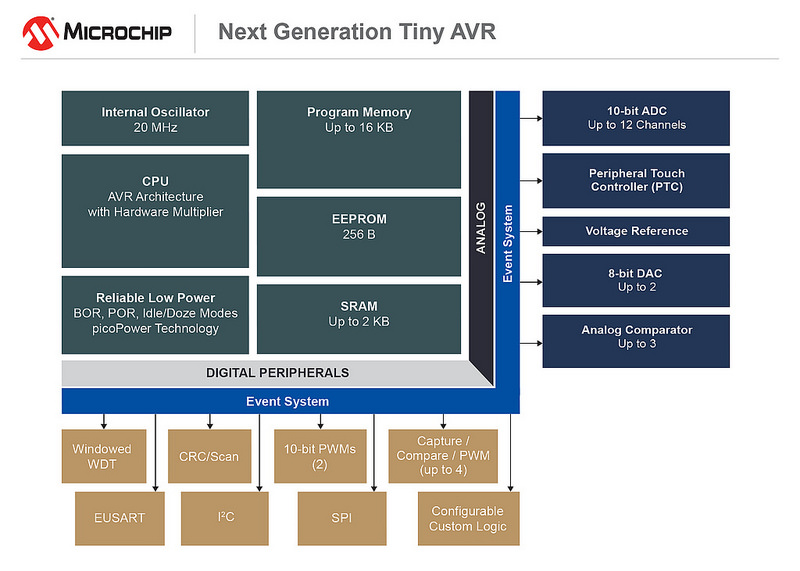

Click for Larger Image - Microchip Releases New ATtiny1617 Series of Microcontrollers

Development and Support
The new devices are fully supported by the Atmel Studio 7 Integrated Development Environment (IDE), the STK600 platform and Atmel START, a free online tool to configure peripherals and software for easy development.


Features of the ATtiny1617 Series of AVR Microcontrollers

  • AVR® 8-bit CPU
    • Up to 20MHz
    • Single cycle I/O access
    • Two-level interrupt controller
    • Two-cycle hardware multiplier
  • Internal oscillator: ±2% across 0 to 70°C
  • Various levels of internal VREF
  • Timer/counters:
    • 1 x 16-bit General Purpose (3 channel)
    • 1 x 16-bit capture timer
    • 1 x 12-bit PWM
    • 16-bit RTC
  • Digital-to-Analog Converter: up to three
  • UART, SPI, I²C
  • 12-channel ADC (1 or 2), 10-bit, 115 ksps
  • Analog comparator: 1 – 3 high speed
  • Custom logic/CRC scan
  • Peripheral Touch Controller with driven shield, self-cap and mutual cap
  • 12 – 22 I/Os
  • Operating voltage range: 1.8 – 5.5V
  • Temperature range: −40 to 105°C, −40 to 125°C
  • 16KB In-system self-programmable Flash memory
  • 256B EEPROM
  • 2KB SRAM

More information on the ATtiny1617 Series of AVR Microcontrollers can be found on the Microchip website at Microchip ATtiny1617 Microcontroller Product Page


Note: The Microchip name and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A and other countries. All other trademarks mentioned herein are the property of their respective companies.


The Microchip website address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation - Release Date, 13th March, 2017]
