New Range of PIC32 Microcontrollers With Core Independent Peripherals


The New Microchip PIC32MM Family Offers Lower Power and Small Package Sizes Making Them Ideal for Internet of Things Applications


Microchip® have released the company’s lowest power and most cost-effective family of 32-bit PIC32 microcontrollers (MCUs). The Microchip PIC32MM family bridges the gap between the company’s popular PIC24F XLP and PIC32MX families. The new family is the first PIC32 to feature core independent peripherals, designed to offload the CPU for lower power and lower system design. The PIC32MM devices are supported by the Microchip MPLAB® Code Configurator (MCC) to help simplify and accelerate designs.

Click for Larger Image - Microchip Launches New Range of PIC32 Microcontrollers With Core Independent Peripherals Today’s embedded applications targeting the Internet of Things (IoT), consumer, industrial control, and motor control require flexible MCUs that consume less power, are more cost effective and have smaller form factors. For applications demanding low power and longer battery life, the PIC32MM has sleep modes down to 500 nA. Applications with space constraints will benefit from the small 4 x 4 mm package options. The PIC32MM devices include core independent peripherals such as Configurable Logic Cells (CLC) and Multiple-output Capture Compare PWMs (MCCPs) which help enable sensorless BLDC motor control applications.

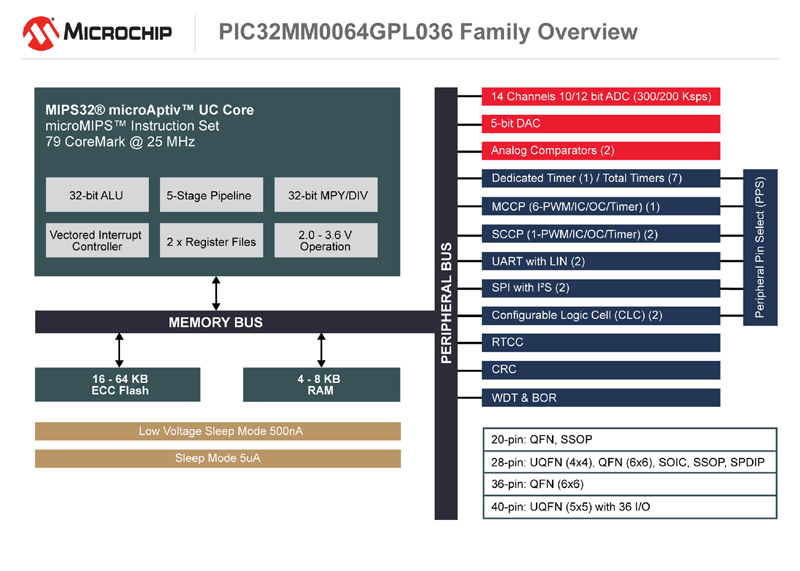

Click for Larger Image - PIC32MM0064GPL036 Microcontroller Block Diagram “With volume pricing starting at $0.60, sleep modes down to 500 nA, and compact 4 x 4 mm packages, the PIC32MM family offers a compelling solution for applications with budget, power and size constraints,” said Joe Thomsen, vice president of Microchip’s MCU16 business unit. “Supported by the popular MPLAB Code Configurator tool, these PIC32MM devices are easy to set up, accelerating design schedules for rapidly changing markets.”

More information on the PIC32MM Microcontroller Family can be found on the Microchip website at www.microchip.com/design-centers/32-bit/pic-32-bit-mcus/pic32mm-family

Note: The Microchip name and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A and other countries. All other trademarks mentioned herein are the property of their respective companies.



The Microchip website address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation - Release Date, 27th June, 2016]
