LT Releases NiMH Charger-Receiver for Hearing Aid Applications
The LTC4123 Combines a Wireless Receiver with Linear Charger for NiMH Batteries
Linear Technology (now part of Analog Devices) has released the LTC4123 to further expand its
offerings in wireless battery charging. The LTC4123 combines a 30mW wireless receiver with a
constant-current/constant-voltage linear charger for NiMH batteries, such as Varta's power

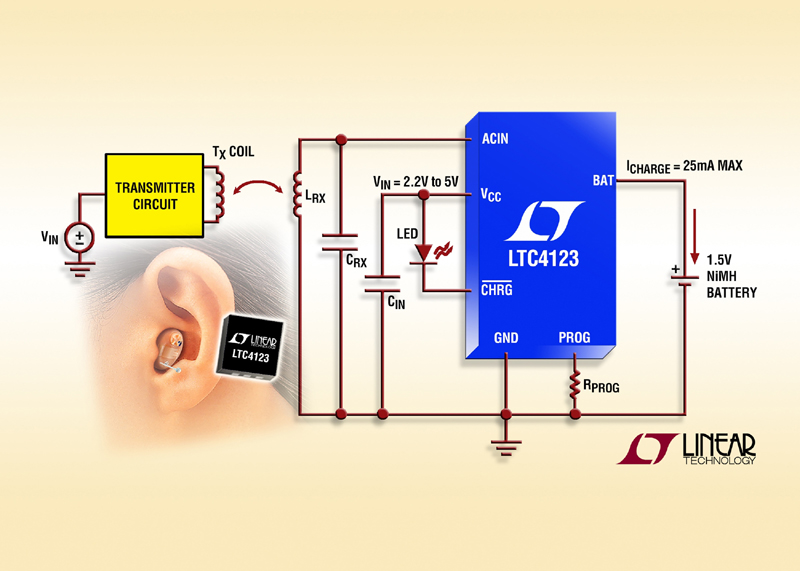

one ACCU plus series. An external resonant LC tank connected to the LTC4123 enables the IC to
receive power wirelessly from an alternating magnetic field generated by a transmit coil.
Integrated power management circuitry converts the coupled AC current into the
DC current required to charge the battery. Wireless charging with the LTC4123 allows for a completely sealed
product and eliminates the need to constantly replace primary batteries. Zn-Air (Zinc-Air) detection allows
applications to work interchangeably with both rechargeable NiMH batteries and primary Zn-Air
batteries with the same application circuit. Both battery types can directly power a hearing aid ASIC
without the need for additional voltage conversion. By contrast, a 3.7V Li-ion
battery requires a stepdown regulator in addition to the LTC4123's functionality to power the ASIC.
The LTC4123 rectifies AC power from the receive coil, and can also accept a 2.2V to 5V input to power a full-featured constant-current/constant-voltage battery charger. Features of the LTC4123 charger include programmable charge current up to 25mA, a single-cell 1.5V battery charge voltage with ±0.5% accuracy, charge status indication and an onboard safety charge termination timer. A temperature-compensated charge voltage protects the NiMH battery and prevents overcharging. The LTC4123 prevents charging when batteries are inserted with reverse polarity and pauses charging if the temperature becomes too hot or too cold.
Features of the Linear Technology LTC4123 include:
- Complete Low Power Wireless NiMH Charger
- Low Minimum Input Voltage: 2.2V
- Temperature Compensated Charge Voltage
- Integrated Rectifier with Overvoltage Limit
- Zinc-Air Battery Detection
- Reverse Polarity Protection
For more information on the LTC4123 Low Power Wireless Charger, visit the Analog Devices Website at
Linear Technology LTC4123 product page
The Analog Devices website address is www.analog.com.
[Reprinted with kind permission from Linear Technology - Release Date: 16th December, 2015]
