New PIC18F25K83 Micro with Improved Response Times on CAN Networks

The Microchip PIC18F25K83 incorporates Core Independent Peripherals to reduce the load on the main processor

Microchip’s PIC18 product line has been expanded to include a new line of 8-bit microcontrollers (MCUs) that combine a Controller Area Network (CAN) bus with an extensive array of Core Independent Peripherals (CIPs). The CIPs increase system capabilities while making it easier for designers to create CAN-based applications without the complexity of added software.

Click for Larger Image - Microchip Releases New PIC18F25K83 Microcontroller with Improved Response Times on CAN Networks A key advantage of using a K83 MCU in CAN-based systems is that the CIPs provide deterministic response to real time events, shorten design time and can be easily configured through the MPLAB® Code Configurator (MCC) tool. The new family is ideal for applications using CAN in the medical, industrial and automotive markets, such as motorized surgical tables, asset tracking, ultrasound machines, automated conveyors and automotive accessories. System designers can benefit greatly by saving time, as it is significantly easier to configure a hardware-based peripheral, as opposed to writing and validating an entire software routine, to accomplish a task.

“Being able to configure an MCU with a few clicks within MCC will change the way you design with CAN,” said Steve Drehobl, vice president of Microchip’s 8-bit MCU business unit. “The CIPs in the K83 family make it easier to use communications, intelligent analog and low-power features with the same tool set as with other PIC® microcontrollers.” The PIC18 K83 devices contain 15 time-saving CIPs including: Cyclic Redundancy Check (CRC) with memory scan for ensuring the integrity of non-volatile memory; Direct Memory Access (DMA) enabling data transfers between memory and peripherals without CPU involvement; Windowed Watchdog Timer (WWDT) for triggering system resets; 12-bit Analog-to-Digital Converter with Computation (ADC2) for automating analog signal analysis for real-time system response; and Complementary Waveform Generator (CWG) enabling high-efficiency synchronous switching for motor control.

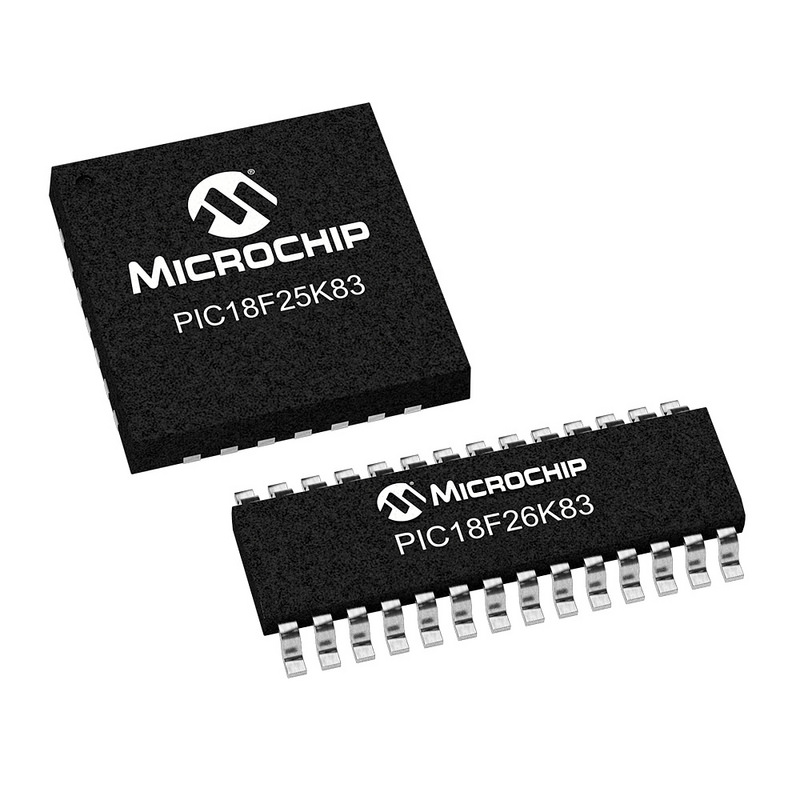

Click for Larger Image - Microchip Releases New PIC18F25K83 Development Support
The new products are supported by MPLAB Code Configurator (MCC), a free software plug-in that provides a graphical interface to configure peripherals and functions specific to your application. MCC is incorporated into Microchip’s downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE. The family is also supported by the Curiosity High Pin Count (HPC) Development Board.

Technical Specifications of the PIC18F25K83 Microcontroller

  • 64MHz Internal Oscillator
  • Up to 64 KB Flash Program Memory
  • Up to 4 KB Data SRAM & 1KB Data EEPROM
  • 12-bit ADC2 (ADC with Computation), 24 channels
  • Three 16-bit Timers
  • Two Comparators
  • Zero Cross Detect (ZCD)
  • Windowed Watch Dog Timer (WWDT)
  • Cyclic Redundancy Check (CRC) with SCAN
  • Vectored Interrupt Capability (VI)
  • 10-bit PWMs
  • 5-bit DAC
  • Complementary Waveform Generator (CWG)
  • Data Signal Modulator (DSM)
  • UART, SPI, and I²C

More information on the PIC18F K83 Microcontroller Family can be found on the Microchip website at Microchip PIC18F Series Page

Note: The Microchip name and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A and other countries. All other trademarks mentioned herein are the property of their respective companies.

The Microchip website address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation - Release Date, 13th November, 2017]
