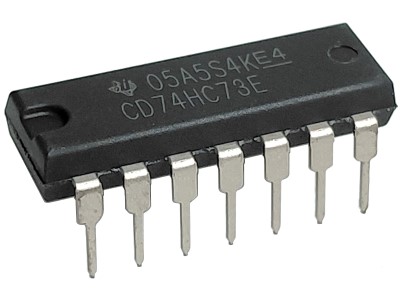

74HC73 Features
- Standard 14-Pin DIP IC
- Two Independent Negative Edge Triggered J-K Flip-Flops
- High-Speed CMOS Type
- Operating Temperature to 70°C
- Equivalent to CD74HC73E, 74HC73N, HD74HC73P
Description
The 74HC73 contains two independent negative
edge triggered J-K type flip-flops with separate clock and reset inputs.
Each flip-flop has a Q and complementary Q output. The input pins also
include clamp diodes for use with limiting resistors in cases where the
input signal voltages exceed Vcc.
|
Part Summary
|
|
Manufacturer
|
Various
|
|
Manufacturer's Part Number
|
74HC73
|
|
Manufacturer's Web Site
|
-
|
|
Futurlec Part Number
|
74HC73
|
|
Department
|
Integrated Circuits
|
|
Category
|
74HC Series
|
|
RoHS Compliant
|
Yes
|
|
Package Type
|
14 Pin DIP
|
|
