74HC283 Features

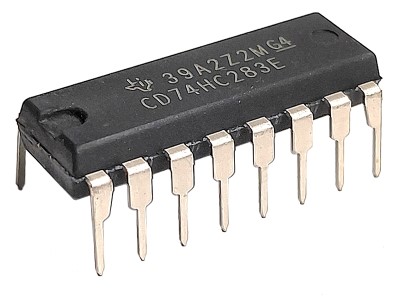

- Standard 74HC283 16-Pin DIP IC
- For Adding Two Binary Numbers
- Fast Ripple Carry for Expansion
- Operates with Positive and Negative Logic
- Lower Power Consumption compared to LSTTL
- Standard TTL Switching Voltages
Description
The 74HC283 performs the addition of
two 4-bit Binary Numbers. The sum outputs are provided for
each of the bits and the resultant carry is obtained from the fourth bit.
The result is shown at the four sum output pins plus Cout (output carry pin).
|
Part Summary
|
|
Manufacturer
|
Various
|
|
Manufacturer's Part Number
|
CD74HC283
|
|
Manufacturer's Web Site
|
-
|
|
Futurlec Part Number
|
74HC283
|
|
Department
|
Integrated Circuits
|
|
Category
|
74HC Series
|
|
RoHS Compliant
|
-
|
|
Package Type
|
16 Pin DIP
|
|
Technical Data
|
|
