TDA2005 - TDA2005 20W Car Radio Power Amplifier - Buy TDA2005

Photograph
TDA2005 - TDA2005 20W Car Radio Power Amplifier
Features

arrowReduced Size and Space Requirements

arrowExternal Components Required Minimised

arrowHigh Output Current Capability

arrowLow Harmonic Distortion

arrowShort Circuit Protection

arrowOver Temperature Protection


Pin Description
Pin Number Description
1 Non-Inverting Input 1
2 Inverting Input 1
3 Supply Voltage Rejection Ratio
4 Inverting Input 2
5 Non-Inverting Input 2
6 Ground
7 Bootstrap 2
8 Output 2
9 Positive Power Supply
10 Output 1
11 Bootstrap 1
Pin Layout
Philips TDA2005 Pin Layout

Dimensional Drawing

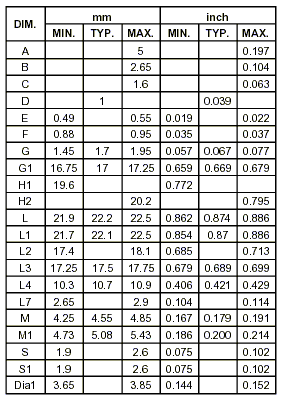

ST Microelectronics - SIL Dimension Drawing
ST Microelectronics - SIL Dimension Drawing

Technical Data

Data Sheet

Philips - Data Sheet for TDA2005 TDA2005 Datasheet
