MAX232CPE +5V Multichannel RS232 Transceivers Datasheet

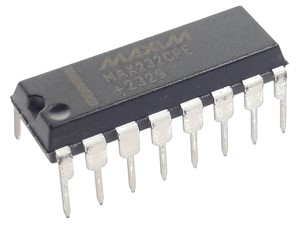

| Photograph |
|
| Product Details |
|
The MAX232CPE is an RS232 Transceiver, which
operates from a single +5V supply and includes an integrated charge pump
for operation at RS-232 voltage levels.
The MAX232CPE includes two RS-232 receivers and two RS-232 drivers.
The MAX232CPE is suitable for data rates up to 120kbits/second and
requires only 4 external capacitors for operation.
Features
- Superior to Bipolar
- 120kbits/sec Data Rate
- Requires only 4 external capacitors
- Three State TTL/CMOS Receiver Outputs
- Designed for RS232 and V.28 Applications
|
| Pin Layout |
|
| Pin Description |
|
Pin Number
|
Description
|
|
1
|
C1+ - Capacitor 1 Positive Terminal
|
|
2
|
V+ - Positive Supply
|
|
3
|
C1- - Capacitor 1 Negative Terminal
|
|
4
|
C2+ - Capacitor 2 Positive Terminal
|
|
5
|
C2- - Capacitor 2 Negative Terminal
|
|
6
|
V- - Negative Supply
|
|
7
|
T2OUT - Transmitter 2 Output
|
|
8
|
R2IN - Receiver 2 Input
|
|
9
|
R2OUT - Receiver 2 Output
|
|
10
|
T2IN - Transmitter 2 Input
|
|
11
|
T1IN - Transmitter 1 Input
|
|
12
|
R1OUT - Receiever 1 Output
|
|
13
|
R1IN - Receiver 1 Input
|
|
14
|
T1OUT - Transmitter 1 Output
|
|
15
|
GND - Ground
|
|
16
|
Vcc - +5V Power Supply
|
|
| Dimensional Drawing |
|
| Technical Data |
|
