AT89C52-24AC - AT89C52 44-Pin 24MHz 8kb 8-bit 80 Series Microcontroller
Photograph
Features
- Compatible with MCS-51 Products
- 8K Bytes of In-System Reprogrammable Flash Memory
- Fully Static Operation: 0 Hz to 24 MHz
- Three-level Program Memory Lock
- 256 x 8-bit Internal RAM
- 32 Programmable I/O Lines
- Three 16-bit Timer/Counters
- Eight Interrupt Sources
- Programmable Serial Channel
- Low-power Idle and Power-down Modes
- 44-pin PLCC
Pin Layout
Pin Description
| Pin Number | Description |
|---|---|
| 1 - 3 | P1.5 - P1.7 - Port 1 |
| 4 | RST - Reset |
| 5 | P3.0 - Port 3 |
| 6 | NC - Not Connected |
| 7 - 13 | P3.1 - P3.7 - Port 3 |
| 14 | XTAL2 - Crystal |
| 15 | XTAL1 - Crystal |
| 16 | GND - Ground |
| 17 | NC - Not Connected |
| 18 - 25 | P2.0 - P2.7 - Port 2 |
| 26 | PSEN - Program Store Enable |
| 27 | ALE - Address Latch Enable |
| 28 | NC - Not Connected |
| 29 | EA - External Access Enable |
| 30 - 37 | P0.7 - P0.1 - Port 0 |
| 38 | VCC - Positive Power Supply |
| 39 | NC - Not Connected |
| 40 - 44 | P1.0 - P1.4 - Port 1 |

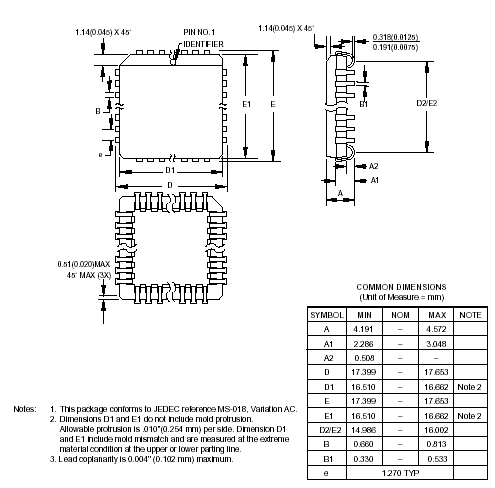

Dimensional Drawing
