LED DISPLAYS

LEDM88RG - Red-Green 8x8 LED Matrix Display
Photograph
LEDM88RG - Red-Green 8x8 LED Matrix Display

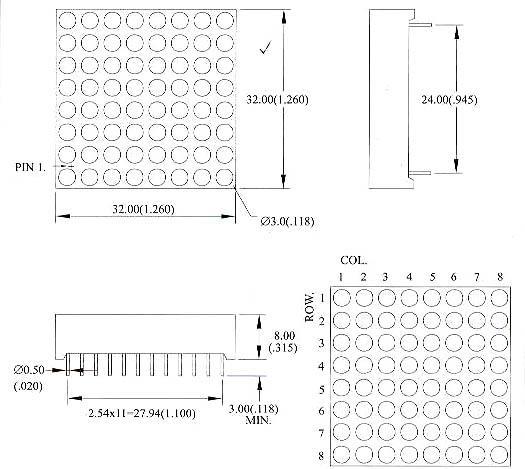

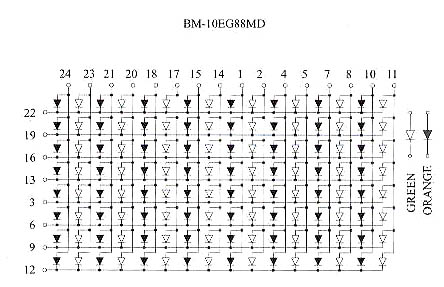

Pin Layout and Circuit Diagram
LEDM88RG - Red-Green 8x8 LED Matrix Display

LEDM88RG - Red-Green 8x8 LED Matrix Display

Features
Clear Display
Tight Tolerance Between Displays
Easy Mounting

Specifications
Display
Dot Size: 1.25"
Material: GaAsP/GaP
Emitted Color: Hi-Eff.Red / Green
Peak Wavelength: 635/568 nm

Red
Absolute Maximum Ratings
Change in Wavelength: 45 nm
Power Dissipation (Pd): 80 mw
Forward Current (If): 30 mA
Peak Forward Current (Ifp): 150 mA

Electro-Optical Data (@ 10 mA)
Forward Voltage - Typical: 2.0 V
Forward Voltage - Maximum: 2.5 V
Luminous Intensity Typical Per Segment: 10.0 Mcd

Green
Absolute Maximum Ratings
Change in Wavelength: 30 nm
Power Dissipation (Pd): 80 mw
Forward Current (If): 30 mA
Peak Forward Current (Ifp): 150 mA

Electro-Optical Data (@ 10 mA)
Forward Voltage - Typical: 2.1 V
Forward Voltage - Maximum: 2.5 V
Luminous Intensity Typical Per Segment: 10.0 Mcd
