LEDBARMULTI - 10 LED Multi-Color Bargraph Technical Data - Buy LEDBARMULTI

Photograph
LEDBARMULTI - 10 LED Multi-Colour Bargraph

Features

arrowGreat for Audio Applications and VU Meters

arrowBright Red and Green LED's

arrowMulti-Color Output

arrowRoHS Compliant

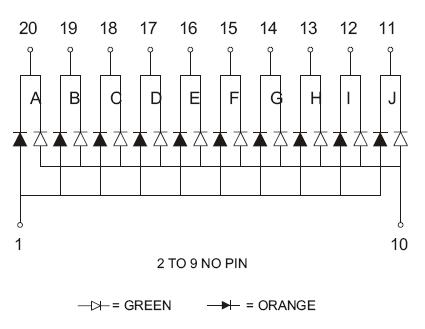

Circuit Diagram
LEDBARMULTI - 10 LED Multi-Color Bargraph Circuit Diagram

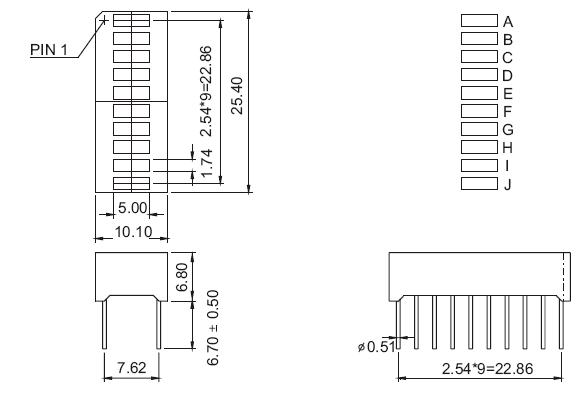

Dimensions
LEDBARMULTI - 10 LED Multi-Color Bargraph Dimensions

Specifications

Display

  • LED Size: 2x5mm
  • Material: GaAsP Red + GaP Green
  • Emitted Color: Red / Green
  • Peak Wavelength: 630nm Red / 570nm Green

Absolute Maximum Ratings

  • Reverse Voltage(Vr): 5 V
  • Forward Current (If): 30mA Red / 30mA Green
  • Peak Forward Current (Ifp): 150 mA
  • Operating Temperature (Topr): -40°C to +80°C
  • Storage Temperature (Ttsg): -40°C to +85°C
  • Lead Soldering Temperature : 260°C

Electro-Optical Data (@ 20mA)

  • Forward Voltage - Red - Typical: 2.1V
  • Forward Voltage - Red - Maximum: 2.2V
  • Forward Voltage - Green - Typical: 2.2V
  • Forward Voltage - Green - Maximum: 2.5V
  • Luminous Intensity - Red: 120 mcd
  • Luminous Intensity - Green: 100 mcd
  • RoHS Compliant: Yes
