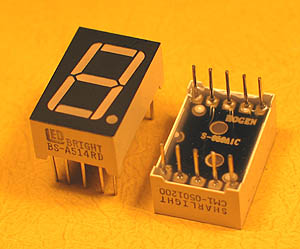

Photograph
7SEG1RCA - Single Red 0.52in CA 7-Segment LED Display

Features

arrowIdeal for Clocks, Counters and Meters

arrowBright Red LED's

arrowEasy to Read

arrowRoHS Compliant


Circuit Diagram
7SEG1RCA - Single Red 0.52in CA 7-Segment LED Display Circuit Diagram

Dimensions
7SEG1RCA - Single Red 0.52in CA 7-Segment LED Display Dimensions

Specifications

Display

  • Digit Size: 0.52"
  • Material: GaAsP
  • Emitted Color: Red
  • Dominant Wavelength: 660 nm

Absolute Maximum Ratings

  • Reverse Voltage(Vr): 5 V
  • Reverse Leakage Current (Ir): 20 µA
  • Forward Current (If): 40 mA
  • Peak Forward Current (Ifp): 200 mA
  • Operating Temperature (Topr): -40°C to +80°C
  • Storage Temperature (Ttsg): -40°C to +85°C
  • Lead Soldering Temperature : 260°C

Electro-Optical Data (@ 20mA)

  • Forward Voltage - Typical: 1.70V
  • Forward Voltage - Maximum: 2.00V
  • Luminous Intensity - Typical per Segment: 1 mcd
  • RoHS Compliant: Yes
