Single Blue 2.3" Common Anode 7-Segment LED Display Technical Data - Buy 7SB23011BB
Photograph |
|
Features |
Ideal for Queue Numbers, Scoreboards and Large Clocks
Ultrabright Blue LED's
Easy to Read
RoHS Compliant
|

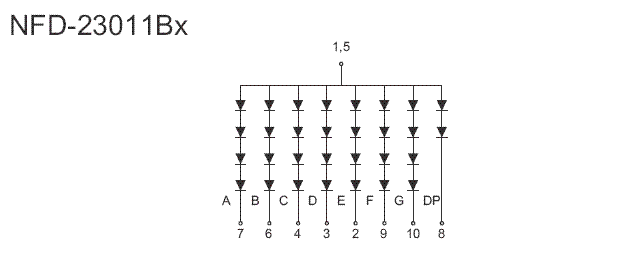

Circuit Diagram |
|
Dimensions |
|
Specifications |
Display
- Digit Size: 2.3"
- Material: InGaN/SiC
- Emitted Color: Ultra Blue
- Dominant Wavelength: 470 nm
Absolute Maximum Ratings
- Reverse Voltage(Vr): 5 V
- Reverse Leakage Current (Ir): 50 µA
- Forward Current (If): 30 mA
- Peak Forward Current (Ifp): 100 mA
- Power Dissipation (P): 120 mW per Segment
- Operating Temperature (Topr): -40°C to +80°C
- Storage Temperature (Ttsg): -40°C to +85°C
- Lead Soldering Temperature : 260°C
Electro-Optical Data (@ 20mA)
- Forward Voltage - Typical: 14.0V
- Forward Voltage - Maximum: 16.0V
- Forward Voltage - Decimal Point - Typical: 7.0V
- Forward Voltage - Decimal Point - Maximum: 8.0V
- Luminous Intensity - Typical per Segment: 240.0 mcd
- RoHS Compliant: Yes
|
