7SB10012BB - Single Blue 1.0in CA 7-Segment LED Display

Features

arrowIdeal for Queue Numbers, Scoreboards and Large Clocks

arrowUltrabright Blue LED's

arrowEasy to Read

arrowRoHS Compliant

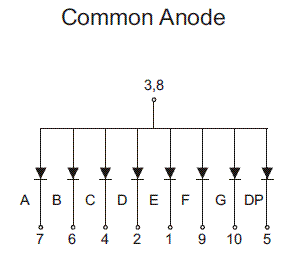

Circuit Diagram
7SB10012BB - Single Blue 1.0in CA 7-Segment LED Display Circuit Diagram

Dimensions
7SB10012BB - Single Blue 1.0in CA 7-Segment LED Display Dimensions

Specifications

Display

  • Digit Size: 1.0"
  • Material: InGaN/SiC
  • Emitted Color: Ultra Blue
  • Dominant Wavelength: 470 nm

Absolute Maximum Ratings

  • Reverse Voltage(Vr): 5 V
  • Reverse Leakage Current (Ir): 20 µA
  • Forward Current (If): 30 mA
  • Peak Forward Current (Ifp): 100 mA
  • Power Dissipation (P): 120 mW per Segment
  • Operating Temperature (Topr): -40°C to +80°C
  • Storage Temperature (Ttsg): -40°C to +85°C
  • Lead Soldering Temperature : 260°C

Electro-Optical Data (@ 20mA)

  • Forward Voltage - Typical: 3.5V
  • Forward Voltage - Maximum: 4.0V
  • Luminous Intensity - Typical per Segment: 60.0 mcd
  • RoHS Compliant: Yes
