Four Green 0.56" Common Cathode 7-Segment LED Display Data

Photograph
7FG5641AG - Four Green 0.56in Common Cathode 7-Segment LED Display

Features
  • Great for Clocks and Counters
  • Bright Green LEDs
  • Easy to Read
  • RoHS Compliant

Circuit Diagram
7FG5641AG - Four Green 0.56in Common Cathode 7-Segment LED Display Circuit Diagram

Dimensions

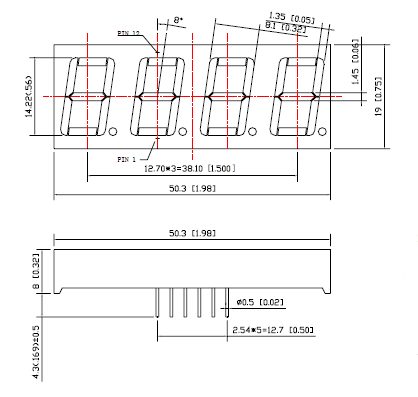

7FG5641AG - Four Green 0.56in Common Cathode 7-Segment LED Display Dimensions
7FG5641AG - Four Green 0.56in Common Cathode 7-Segment LED Display Dimensions

Specifications

Display

  • Digit Size: 0.56"
  • Material: InGaN
  • Emitted Color: Green
  • Dominant Wavelength: 525 nm

Absolute Maximum Ratings

  • Reverse Voltage(Vr): 5 V
  • Reverse Leakage Current (Ir): 50 µA
  • Forward Current (If): 25 mA
  • Peak Forward Current (Ifp): 100 mA
  • Power Dissipation (P): 100 mW per Segment
  • Operating Temperature (Topr): -40°C to +80°C
  • Storage Temperature (Ttsg): -40°C to +85°C
  • Lead Soldering Temperature : 260°C

Electro-Optical Data (@ 20mA)

  • Forward Voltage - Typical: 3.2V
  • Forward Voltage - Maximum: 4.0V
  • Luminous Intensity - Minimum per Segment: 7 mcd
  • Luminous Intensity - Typical per Segment: 14 mcd
  • RoHS Compliant: Yes
