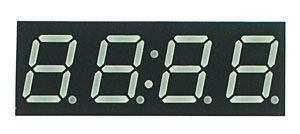

Four Blue 0.39" Common Anode 7-Segment LED Clock Display Data

• Great for Clocks and Counters
• Ultrabright Blue LEDs
• Easy to Read
• RoHS Compliant

Display

• Digit Size: 0.39"
• Material: InGaN
• Emitted Color: Blue
• Dominant Wavelength: 470 nm

Absolute Maximum Ratings

• Reverse Voltage(Vr): 5 V
• Reverse Leakage Current (Ir): 50 µA
• Forward Current (If): 25 mA
• Peak Forward Current (Ifp): 100 mA
• Power Dissipation (P): 100 mW per Segment
• Operating Temperature (Topr): -40°C to +80°C
• Storage Temperature (Ttsg): -40°C to +85°C
• Lead Soldering Temperature : 260°C

Electro-Optical Data (@ 20mA)

• Forward Voltage - Typical: 3.2V
• Forward Voltage - Maximum: 4.0V
• Luminous Intensity - Minimum per Segment: 6 mcd
• Luminous Intensity - Typical per Segment: 12 mcd
• RoHS Compliant: Yes
