Double Hi-Red 0.56" 7-Segment Common Cathode LED Display Technical Data - Buy 7DR5621AS

Photograph
7DR5621AS - Double Hi-Red 0.56in 7-Segment Common Cathode LED Display

Features

arrowIdeal for Counters and Meters

arrowBright Red LED's

arrowEasy to Read

arrowRoHS Compliant


Circuit Diagram
7DR5621AS - Double Hi-Red 0.56in 7-Segment Common Cathode LED Display Circuit Diagram

Dimensions

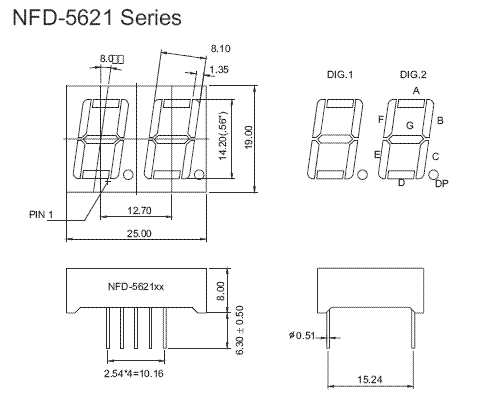

7DR5621AS - Double Hi-Red 0.56in 7-Segment Common Cathode LED Display Dimensions

Specifications

Display

  • Digit Size: 0.56"
  • Material: GaAlAs/GaAs
  • Emitted Color: Red
  • Dominant Wavelength: 660 nm

Absolute Maximum Ratings

  • Reverse Voltage(Vr): 5 V
  • Reverse Leakage Current (Ir): 50 µA
  • Forward Current (If): 25 mA
  • Peak Forward Current (Ifp): 150 mA
  • Power Dissipation (P): 60 mW per Segment
  • Operating Temperature (Topr): -40°C to +80°C
  • Storage Temperature (Ttsg): -40°C to +85°C
  • Lead Soldering Temperature : 260°C

Electro-Optical Data (@ 20mA)

  • Forward Voltage - Typical: 1.85V
  • Forward Voltage - Maximum: 2.20V
  • Luminous Intensity - Minimum per Segment: 128 mcd
  • Luminous Intensity - Typical per Segment: 192 mcd
  • RoHS Compliant: Yes
