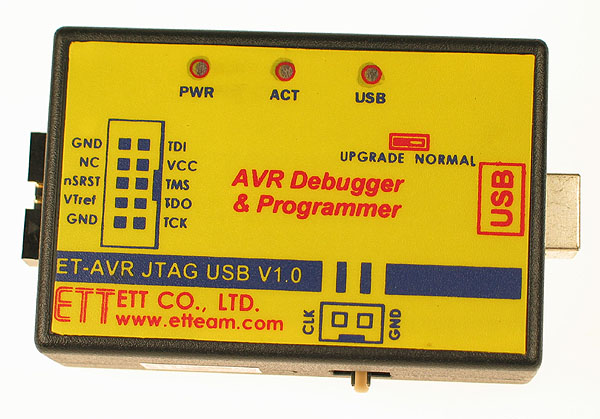

ET-AVR JTAG Debugger & Programmer - USB Connection

AVR JTAG with the new ET-AVR Stamp and Stamp Board

Programming connector for connection to target board

Program and debug your Atmel AVR Microcontroller project with our JTAG interface. This unit plugs directly into the target board for controlling and programming your AVR device. Works with the free AVR Studio IDE and allows for single stepping through your program, viewing register values and also for programming the microcontroller. Find program errors quickly and easily, with this easy to use debugging tool.

Programs can be downloaded directly through the JTAG interface to your target board. Program execution can be initiated from the program and the various register values read and monitored through the software. Easily find program errors and control program execution through the easy to use, user interface.

The ET-AVR JTAG connects directly to your computers or laptops USB port. A 10 pin connector then connects to the target board. The power source is taken from the target board and no separate power supply is required.

The ET-AVR JTAG interface is the ideal debugging tool for developing your AVR applications.

Please Note: ET-AVR Stamp and Stamp Board sold separately.

Part Code: ETAVRJTAGUSB

Features

Dramatically Reduce Program Development and Testing Time
Single Step Through your Program and Monitor Register Values
Set Breakpoints and Watch Values
Works with Atmel AVR Studio Software
Standard USB Connection
No Separate Power Supply Required Uses On-Board Supply
Power and Activity LED's

Devices Supported

ATmega16x: ATmega16, ATmega16L, ATmega162, ATmega162L, ATmega169, ATmega169L, ATmega169V
ATmega32x: ATmega32, ATmega32L, ATmega323, ATmega323L
ATmega64: ATmega64, ATmega64L
ATmega128: ATmega128, ATmega128L
AT90CAN128: AT90CAN128
