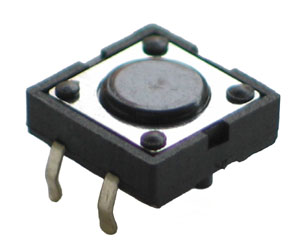

Black Standard Tactile Switch Technical Data

• Ideal for Control Panels and Keypads
• SPST Momentary ON Contact
• Economically Priced
• PCB Mounting
• RoHS Compliant

Contact Data

• Current Rating: 50mA @ 12Vdc
• Operating Force: 160±30 or 250±50gf
• Travel: 0.3±0.15mm
• Contact Resistance: 100mohm Maximum
• Life Cycles: 100,000 Cycles Minimum
• Bounce Time: 10mS
