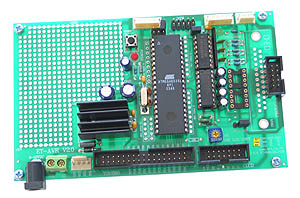

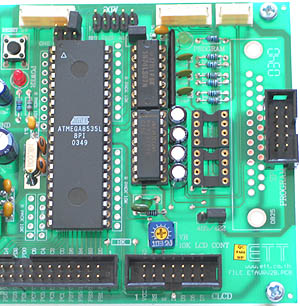

AT90S8535 Development Board

Exciting development board for the ATMega8535, enables easy development and testing of various solutions. ATMega8535L, is already included together with power supply components and crystals. Sockets are provided for the 75176 RS422/RS485 Interface and RS232 Interface. Connections are provided for I/O, LCD, SPI, ADC, PWM and programming. Hex code is downloaded by a parallel port connection to most computers, cable included. Software and manual are also included, featuring examples and easy to follow instructions.

The AT90S8535 is an inexpensive and easy way to enter the new world of the AVR Range of microcontrollers. Which feature very fast instruction speeds and numerous peripheral accessories built-in to the microcontroller. This board is ideal for colleges, schools and universities, or as a platform for more sophisticated development projects.

Please note: Power supply is not included. The AT90S8535 has since been superseded by the ATMega8535, and this board is now supplied with the ATMega8535L.

Part Code: AT8535DEVBOARD

Features

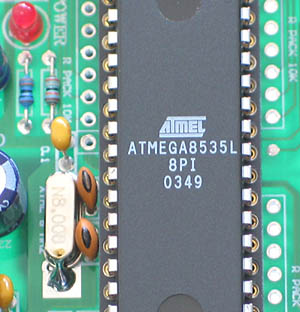

• Includes ATMega8535L
• All necessary power supply components and crystals are already in place
• Easy to Use Software
• ATMega8535L can be programmed in system
• Heaps of different devices and ICs can be easily connected
• Dramatically reduces program development time

Out of Stock
