LATCHREL24V - 2 Coil 24V 5A PCB Latching Relay Technical Data - Buy LATCHREL24V

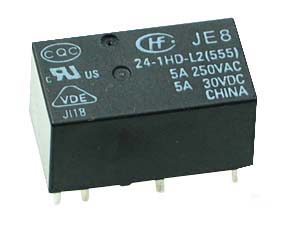

Photograph
LATCHREL24V - 2 Coil 24V 5A PCB Latching Relay

Features

arrow2 Coil Latching - Set and Reset

arrowEasy PCB Mounting

arrowIdeal for Direction Control Relays

arrowRoHS Compliant


Circuit Diagram
LATCHREL24V - 2 Coil 24V 5A PCB Latching Relay Circuit Diagram

Pin Layout
LATCHREL24V - 2 Coil 24V 5A PCB Latching Relay Pin Layout

Specifications

Coil Data

  • Coil Power: 300mW
  • Nominal Voltage: 24Vdc
  • Pick-Up Voltage: 19.2Vdc
  • Drop-Out Voltage: 2.4Vdc
  • Maximum Voltage: 36.0Vdc
  • Coil Resistance: 1920ohm

Contact Data

  • Contact Rating: 5A @ 250Vac/30Vdc
  • Maximum Switching Voltage: 380Vac / 125Vdc
  • Maximum Switching Current: 5 A
  • Maximum Switching Power: 1250VA / 150W
  • Mechanical Endurance: 10,000,000 Operations
  • Electrical Endurance: 100,000 Operations (NO Contact)
  • Maximum Turn-On Time: 10 ms
  • Maximum Turn-Off Time: 5 ms

General

  • Dielectric Strength (Between Contacts): 2000 VAC 1 min
  • Insulation Resistance: 1000 Mohm@500 VDC
  • Ambient Operating Temperature Range: -40°C to +85°C
  • Weight: 4.7g
  • Termination: PCB Pin Mounting
  • RoHS Compliant: Yes

Dimensions
LATCHREL24V - 2 Coil 24V 5A PCB Latching Relay Dimensions

Datasheet - LATCHREL24V Relay Datasheet
