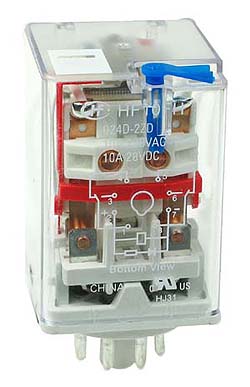

Photograph
GR110VACOCTDPDT - DPDT 110VAC 10A 8 Pin Octal Power Relay

Features

arrowHeavy Duty Octal Plug-In Relay

arrowSuitable for Din Rail Mounting with Base

arrowLED Status Indication

arrowStandard Size, Replaces Similar Types

arrowMounts in GROCTALBASE Socket

arrowRoHS Compliant


Circuit Diagram
GR110VACOCTDPDT - DPDT 110VAC 10A 8 Pin Octal Power Relay Circuit Diagram

Pin Layout
GR110VACOCTDPDT - DPDT 110VAC 10A 8 Pin Octal Power Relay Pin Layout

Specifications

Coil Data

  • Coil Power: 2.7 VA
  • Nominal Voltage: 110Vac
  • Pick-Up Voltage: 88Vac
  • Drop-Out Voltage: 36Vac
  • Maximum Voltage: 132Vac
  • Coil Resistance: 1600ohm

Contact Data

  • Contact Rating: 10A @ 250Vac / 30Vdc
  • Maximum Switching Voltage: 250Vac / 30Vdc
  • Maximum Switching Current: 10 A
  • Maximum Switching Power: 2500 VA / 300 W
  • Mechanical Endurance: 10,000,000 Operations
  • Electrical Endurance: 100,000 Operations
  • Maximum Turn-On Time: 30 ms
  • Maximum Turn-Off Time: 30 ms

General

  • Dielectric Strength (Between Contacts): 2000 VAC 1 min
  • Insulation Resistance: 500 Mohm @ 500 VDC
  • Ambient Operating Temperature Range: -40°C to +55°C
  • Weight: 100g
  • Termination: Standard Octal Relay Base
  • RoHS Compliant: Yes

Dimensions
GR110VACOCTDPDT - DPDT 110VAC 10A 8 Pin Octal Power Relay Dimensions

Datasheet - GR110VACOCTDPDT Relay Datasheet
