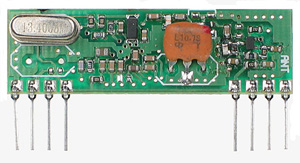

Welcome to Futurlec. The ELECTRONIC COMPONENTS Superstore. To find the component your looking for, either search by Part Number or visit the relative department. Need Help. RADIO MODULES Radio Transmitter - TLP434A Our new Ultra Small Wireless Transmitter is ideal for remote control projects or data transfers to a remote object. Applications include mobile robots, burglar alarms, remote control and wireless data transfers. This compact unit operates from only 2V up to 12V. A range of up to 200m is possible with an antenna fitted. The unit can connect directly to a HT12E IC or similar encoder. Features • Frequency - 433.92MHz • Operating Voltage - 3 - 12 Vdc • Data Rate - Up to 8K bps • Works with HT12E or other Encoder • Dimensions: Width - 10.3mm , Height - 13.3mm (Excluding Pins) Order Now for USD$6.90 Radio Receiver - RLP434 Just released our new Compact Radio Receiver, works directly with the transmitter above on an operating frequency of 433.92MHz. Ideal for many applications, including robots, where commands can be sent directly to the robot, without the need for a hard-wired connection. Suitable for data rates of up to 4.8KHz, and the typical operating current is only 4.5mA. Features • Frequency - 433.92MHz • Operating Voltage - 3.3 - 6 Vdc • Data Rate - 4800 bps • Works with HT12D or other Decoder • Dimensions: Width - 43.4mm , Height - 11.5mm (Excluding Pins) Order Now for USD$6.90 Radio Receiver - RLP434A Improved SAW Based Receiver for greater frequency accuracy and stability. Range of up 100metres with improved data rates. Ideal for use with alarms and remote control devices. Features • Frequency - 433.92MHz • Operating Voltage - 3.3 - 6 Vdc • Data Rate - 4800 bps • Works with HT12D or other Decoder • Dimensions: Width - 43.4mm , Height - 11.5mm (Excluding Pins) Order Now for USD$19.90 Radio Transmitter - TLP418A Our new Ultra Small Wireless Transmitter is ideal for remote control projects or data transfers to a remote object. Applications include mobile robots, burglar alarms, remote control and wireless data transfers. This compact unit operates from only 2V up to 12V. A range of up to 200m is possible with an antenna fitted. The unit can connect directly to a HT12E IC or similar encoder. Features • Frequency - 418MHz • Operating Voltage - 3 - 12 Vdc • Data Rate - Up to 8K bps • Works with HT12E or other Encoder • Dimensions: Width - 10.3mm , Height - 13.3mm (Excluding Pins) Order Now for USD$7.90 Radio Receiver - RLP418 Just released our new Compact Radio Receiver, works directly with the transmitter above on an operating frequency of 418MHz. Ideal for many applications, including robots, where commands can be sent directly to the robot, without the need for a hard-wired connection. Suitable for data rates of up to 4.8KHz, and the typical operating current is only 4.5mA. Features • Frequency - 418MHz • Operating Voltage - 5 Vdc • Data Rate - 4800 bps • Works with HT12D or other Decoder • Dimensions: Width - 43.4mm , Height - 11.5mm (Excluding Pins) Order Now for USD$7.90 Radio Transmitter - TLP868A Our new Ultra Small Wireless Transmitter is ideal for remote control projects or data transfers to a remote object. Applications include mobile robots, burglar alarms, remote control and wireless data transfers. This compact unit operates from only 2V up to 12V. A range of up to 200m is possible with an antenna fitted. The unit can connect directly to a HT12E IC or similar encoder. Features • Frequency - 868.35MHz • Operating Voltage - 3 - 12 Vdc • Data Rate - Up to 8K bps • Works with HT12E or other Encoder • Dimensions: Width - 10.3mm , Height - 13.3mm (Excluding Pins) Out of Stock Radio Receiver - RLP868A New higher frequency and higher data rate radio receiver. This unit is capable of between 3 - 100kbps of data and is ideal for a use with remote sensors, where a high amount of data needs to be transmitted quickly. Excellent frequency stability with good sensitivity. Features • Frequency - 868.35MHz • Operating Voltage - 2.7 - 5.5 Vdc • Data Rate - 3 to 100 k bps • Works with HT12D or other Decoder • Dimensions: Width - 43.4mm , Height - 11.5mm (Excluding Pins) Out of Stock Radio Data Transmitter - 433MHz New wireless data transmitter for transferring large amounts of data wirelessly up to 300m. This compact easy to use unit connects directly to most microcontrollers with a standard SPI interface. FSK transmission with a PLL based tuner ensure reliable and accurate data transfer, with data transfer rates of up to 155K bps. Automatic antenna tuning and low power operation make this unit ideal for a wide range of applications. Features • Frequency - 433MHz • FSK Transmission • PLL Based • Operating Voltage - 2.2 - 5.4 Vdc • High Data Rate - Up to 115.2K bps • Range - Up to 300m • Works with most Microcontrollers, standard SPI Interface • Dimensions: Length - 18mm, Width - 14mm , Height - 9mm (Including Pins) Technical Data • Datasheet   • Programming Guide   Order Now for USD$5.90 Radio Data Receiver - 433MHz New wireless data receiver for transferring large amounts of data wirelessly up to 300m. This compact easy to use unit connects directly to most microcontrollers with a standard SPI interface. FSK transmission with a PLL based tuner ensure reliable and accurate data transfer, with data transfer rates of up to 155K bps. Automatic antenna tuning and low power operation make this unit ideal for a wide range of applications. Features • Frequency - 433MHz • FSK Reception • PLL Based • Operating Voltage - 2.2 - 5.4 Vdc • Low Battery Detection • High Data Rate - Up to 115.2K bps • Range - Up to 300m • Automatic Antenna Tuning • Works with most Microcontrollers, standard SPI Interface • Dimensions: Length - 18mm, Width - 14mm , Height - 9mm (Including Pins) Technical Data • Datasheet   • Programming Guide   Order Now for USD$5.90 Radio Data Transceiver - 433MHz New high performance wireless data transceivers. Ideal for sending and receiving data wirelessly from a remote location up to 300m away in open air. Highly accurate PLL based, with excellent data rates and on-board send and receive registers for easy data transfer. Connects directly to most microcontrollers with a standard SPI interface. Low power consumption make the unit ideal for use with remote temperature monitoring points or for security systems. Features • Frequency - 433MHz • PLL Based • Operating Voltage - 2.2 - 5.4 Vdc • High Data Rate - Up to 115.2K bps • Range - Up to 300m • Rx and Tx Registers • Works with most Microcontrollers, standard SPI Interface • Dimensions: Length - 18mm, Width - 14mm , Height - 9mm (Including Pins) Technical Data • Datasheet   • Programming Guide   Order Now for USD$7.90 Radio Data Transceiver - 433MHz New high performance wireless data transceivers. Ideal for sending and receiving data wirelessly from a remote location up to 300m away in open air. Highly accurate PLL based, with excellent data rates and on-board send and receive registers for easy data transfer. Connects directly to most microcontrollers with a standard SPI interface. Low power consumption make the unit ideal for use with remote temperature monitoring points or for security systems. Features • Frequency - 433MHz • PLL Based • Operating Voltage - 2.2 - 5.4 Vdc • High Data Rate - Up to 115.2K bps • Range - Up to 300m • Rx and Tx Registers • Analog and Digital Signal Strength Indicators • Works with most Microcontrollers, standard SPI Interface • Dimensions: Length - 18mm, Width - 14mm , Height - 9mm (Including Pins) Technical Data • Datasheet   • Programming Guide   Order Now for USD$8.90 Transparent Wireless Data Link - 433MHz - RS232 Interface New standard RS232 Connection Transparent Wireless Data Link module. This compact inexpensive unit is ideal for direct connection to your computer or through a control system for wireless data transmissions between 2 points. The unit features highly accurate and reliable data transmission methods with high data rates and a large transmission range. Data rates and data formats can be set with Windows software. Connects directly to your computer with a standard RS232 interface. Ideal for computer based security systems, remote monitoring systems or data transfer between 2 computers wirelessly. Features • Frequency - 433MHz • Standard RS232 Interface • Operating Voltage - 5.0 Vdc • Selectable Data Rate • Long Transmission Range • Reliable FSK Technology Transmission • Works directly with Computer RS232 Connection • Dimensions: Length - 43mm, Width - 24mm , Height - 12mm Technical Data • Datasheet   Order Now for USD$18.90
