PROGRAMMERS



Click for Larger Image - PIC Programmer

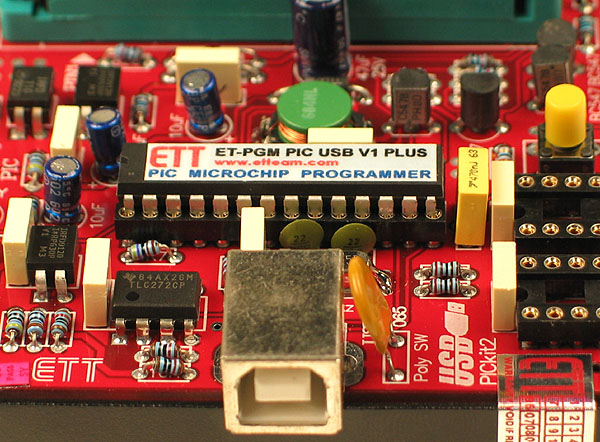

PIC Programmer - USB Connection

Our new USB PIC Programmer is now available. This easy to use programmer incorporates ZIF sockets for easy IC programming and removal. Power is obtained directly from the USB Port and no external supply is required. In-circuit programming is also available with a wide range of adapters available to suite all DIP sizes from 8 to 40 pin, together with a program-run switch for direct in-circuit program execution. The unit programs all the popular PIC Microcontrollers including the PIC16F84, PIC16F628, PIC18F458 and PIC16F877. Fitted with a sturdy plastic base and standard RJ11 connector, together with programming and power led's for status indication.

This programmer is ideal for use with a laptop or desktop computer in your home or school. The unit comes with easy to use Windows software.

Part Code: PICPROGRAMMER


Features

  • ZIF Sockets for Easy IC Programming and Removal
  • No External Power Supply Required
  • Easy to Use Windows Software Included
  • Connects to a standard Computer USB Port
  • Supports a wide range of PIC Microcontrollers from 8 pin to 40 pin
  • In-Circuit Programming Connection and Adapters Available (See Below)
  • Power and Programming LED's

Devices Supported

  • 8 Pin: All PIC12FXXX DIP Parts including PIC12F509, PIC12F629, PIC12F675, PIC12F683
  • 14 Pin: All PIC16FXX DIP Parts including PIC16F630, PIC16F676, PIC16F684, PIC16F688
  • 18 Pin: All PIC16FXX DIP Parts including PIC16F54, PIC16F627A, PIC16F628A, PIC16F648A, PIC16F716, PIC16F84A
  • 20 Pin: All PIC16FXX DIP Parts including PIC16F690
  • 28 Pin: All PIC16FXX DIP Parts including PIC16F72, PIC16F73, PIC16F737, PIC16F876A, PIC18F2550
  • 40 Pin: All PIC16FXX DIP Parts including PIC16F74, PIC16F877A, PIC16F871, PIC16F874, PIC18F458, PIC18F4550


Order Now for only $59.00

Click for Larger Image - PIC Programmer
Click for Larger Image - PIC Programmer



PIC Programmer - 14 Pin Adapter

PIC Programmer - In-Circuit Programming 14 Pin Adapter

In-Circuit program adapter for mounting directly on your project board or controller. Program can be updated, downloaded and run, without the need to remove the IC or adapter.

Features

  • Connects to PIC Programmer Above for Direct In-Circuit Programming
  • Separate Power Supply Not Required
  • Incorporates Program-Run Switch for In-Circuit Program Execution
  • Machine Tooled IC Sockets

Order Now for $4.90

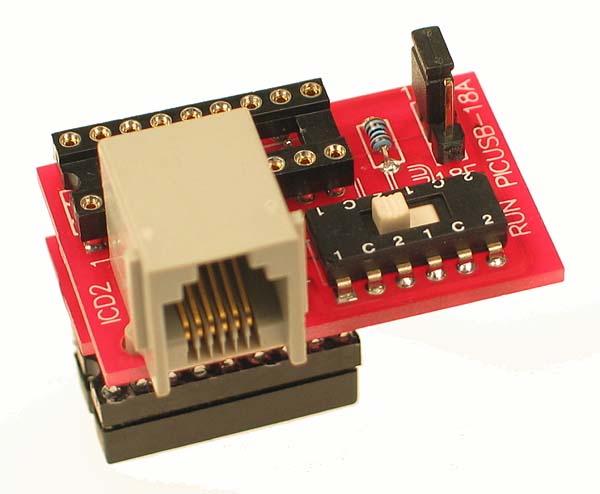

PIC Programmer - 18 Pin Adapter

PIC Programmer - In-Circuit Programming 18 Pin Adapter

In-Circuit program adapter for mounting directly on your project board or controller. Program can be updated, downloaded and run, without the need to remove the IC or adapter.

Features

  • Connects to PIC Programmer Above for Direct In-Circuit Programming
  • Separate Power Supply Not Required
  • Incorporates Program-Run Switch for In-Circuit Program Execution
  • Machine Tooled IC Sockets

Order Now for $4.90




PIC Programmer - 20 Pin Adapter

PIC Programmer - In-Circuit Programming 20 Pin Adapter

In-Circuit program adapter for mounting directly on your project board or controller. Program can be updated, downloaded and run, without the need to remove the IC or adapter.

Features

  • Connects to PIC Programmer Above for Direct In-Circuit Programming
  • Separate Power Supply Not Required
  • Incorporates Program-Run Switch for In-Circuit Program Execution
  • Machine Tooled IC Sockets

Order Now for $4.90

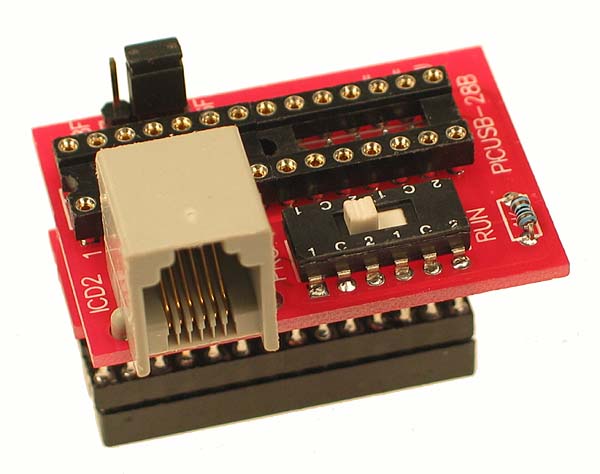

PIC Programmer - 28 Pin Adapter

PIC Programmer - In-Circuit Programming 28 Pin Narrow Adapter

In-Circuit program adapter for mounting directly on your project board or controller. Program can be updated, downloaded and run, without the need to remove the IC or adapter.

Features

  • Connects to PIC Programmer Above for Direct In-Circuit Programming
  • Separate Power Supply Not Required
  • Incorporates Program-Run Switch for In-Circuit Program Execution
  • Machine Tooled IC Sockets

Order Now for $5.90




PIC Programmer - 28 Pin Wide Adapter

PIC Programmer - In-Circuit Programming 28 Pin Wide Adapter

In-Circuit program adapter for mounting directly on your project board or controller. Program can be updated, downloaded and run, without the need to remove the IC or adapter.

Features

  • Connects to PIC Programmer Above for Direct In-Circuit Programming
  • Separate Power Supply Not Required
  • Incorporates Program-Run Switch for In-Circuit Program Execution
  • Machine Tooled IC Sockets

Order Now for $5.90




PIC Programmer - 28 Pin Wide Adapter

PIC Programmer - In-Circuit Programming 40 Pin Adapter

In-Circuit program adapter for mounting directly on your project board or controller. Program can be updated, downloaded and run, without the need to remove the IC or adapter.

Features

  • Connects to PIC Programmer Above for Direct In-Circuit Programming
  • Separate Power Supply Not Required
  • Incorporates Program-Run Switch for In-Circuit Program Execution
  • Machine Tooled IC Sockets

Order Now for $5.90
