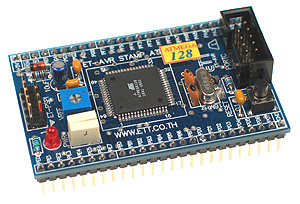

Click for Larger Image - ET-AVR Stamp Module

ET-AVR Stamp Module (Upgraded) - Technical Data


Microcontroller

  • Microcontroller: ATMega128
  • Main Crystal: 16.000MHz
  • Speed: up to 16 MIPS
  • Processor Language: AVR

Memory

  • Program Flash Memory (Internal): 128 kBytes
  • RAM Memory (Internal): 4 kBytes
  • EEPROM Memory (Internal): 4 kBytes

Input/Ouput

  • I/O Points Available: 53
  • I/O Points Connection: Female Header Connector

A/D

  • ADC: Yes - 8 Channel 10-Bit (2 Differential Channels with Programmable Gain)
  • Conversion Speed: 13-260 µs

Clocks

  • Real Time Clock: Yes

Timers

  • Timers: Yes - Two 8-bit and Two 16-bit Timers
  • PWM: Yes - Two Outputs

Auxiliary Communication

  • RS232 Communication: Yes - 2 Channels
  • I²C Communication: Yes
  • SPI Communication: Yes

Ancillary Features

  • In-Circuit Programming: Yes - ET-AVR ISP Required (Sold Separately)
  • Power-On Led: Yes - Red
  • Reset Button: Yes

Power Supply

  • Power-Supply: 5 Vdc

Dimensions

  • LxWxH: 54mm x 42mm x 10mm
  • Pin Spacing: 0.1 inch (IC Standard)
  • Row Spacing: 1.5 inch

Parts Supplied

  • Included Parts: ET-AVR Stamp Module, Download Software, Manual on CD, Examples and Sample Code, Data Sheets on CD.



|  Main Page  |  Technical Data  |  Accessories  |  Tips and Tricks  |

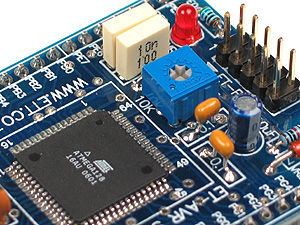

Click for Larger Image - ET-AVR Stamp ATMega128 Microcontroller

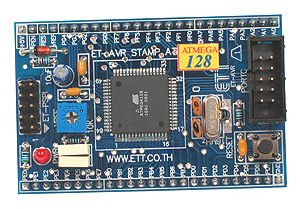

Click for Larger Image - ET-AVR Stamp ATMega128 Microcontroller
