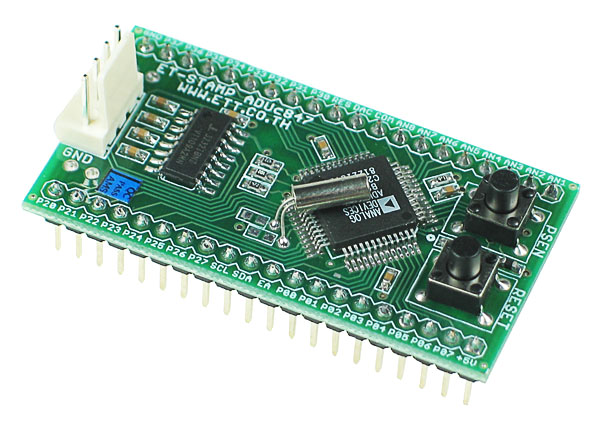

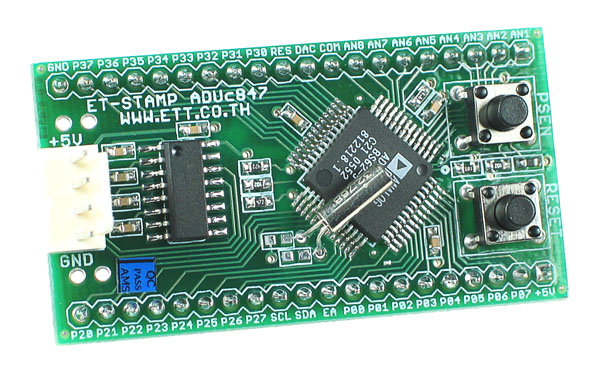

ET-ADuC847 Stamp Module
Available Now our Analog Devices ADuC847 Microcontroller Stamp Module. This compact easy to use Stamp Module, features the
high-performance ADuC847 microcontroller from Analog Devices, with very high accuracy A/D module for
monitoring of sensors and transducers, making the module ideal for real-world monitoring applications.
The ADuC847 is includes a high speed 8051 Core with RISC running at up 41.78MHz.
Programs can be downloaded directly to the module via a simple RS-232 Connection on the module, with easy-to use download software combined with the boot-loader already
installed on the chip. Updates and program modifications can be completed simply without the need to remove or place the module in a programmer.
Also included on the module are 10 channels with high-accuracy 24 bit A/D Converters, as well as a D/A converters for robotic applications,
as well as a USART for easy interfacing to a computer or monitoring system.
A total of 31 I/O points are included on the module, together with I2C ports and a SPI data transfer port.
A number of power saving modes are also available to support battery operated and low power systems.
Also included within the Microcontroller is a range of timers, for PWM and watchdog functions.
A number of software tools are available from Third Party Suppliers for code development in C or Assembly Language.
Together with a wide range of application notes and support information available directly from Analog Devices.
The ET-ADuC847 Stamp Module offers great value for use in real-world control systems requiring
high-accuracy A/D Converters operating at high speed. The module is ideal for use
in sensor units and remote transducers.
Part Code: ETADUC847

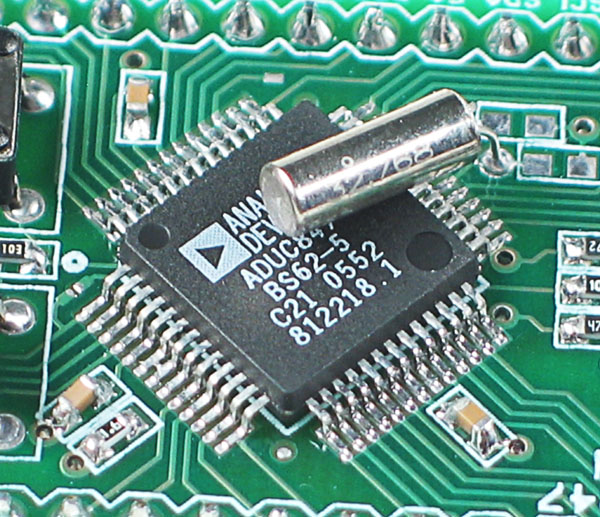

- Includes Analog Devices ADuC847 Microcontroller with 62kb Internal Flash Program Memory
- 8051 Core with RISC running up to 41.78MHz
- Direct In-Circuit Program Download with RS-232 Connection
- Up to 31 I/O points
- 10 Channels High Accuracy 24-Bit A/D Converters
- 12-Bit D/A Converters
- USART and Two I2C Ports, together with SPI
- Three 16-Bit General Purpose Timers
- PSEN and Reset Buttons
- Easy to Install and Remove
- Ideal as an High Accuracy Real-World Monitoring Board
