JQC-3FF-24 - SPDT 24V 5A PCB Relay Technical Data - Buy JQC-3FF-24

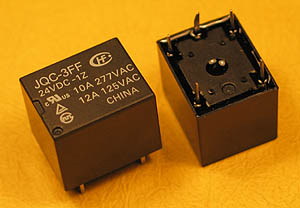

Photograph
JQC-3FF-24 - SPDT 24V 5A PCB Relay

Circuit Diagram
JQC-3FF-24 - SPDT 24V 5A PCB Relay Circuit Diagram

Pin Layout
JQC-3FF-24 - SPDT 24V 5A PCB Relay Pin Layout
Features

High Current Contacts

Switching Capacity to 10A

RoHS Compliant

Economically Priced


Specifications
Coil Data

Coil Power: 360mW

Nominal Voltage: 24Vdc

Pick-Up Voltage: 18.0Vdc

Drop-Out Voltage: 2.4Vdc

Maximum Voltage: 31.2Vdc

Coil Resistance: 1600ohm


Contact Data

Contact Rating: 10A 277Vac / 28Vdc

Maximum Switching Voltage: 277Vac / 30Vdc

Maximum Switching Current: 10 A

Maximum Switching Power: 2770VA / 210W

Mechanical Endurance: 10,000,000 Operations

Electrical Endurance: 100,000 Operations (NO Contact)

Maximum Turn-On Time: 10 ms

Maximum Turn-Off Time: 5 ms


General

Dielectric Strength (Between Contacts): 750 VAC 1 min

Insulation Resistance: 1000 Mohm@500 VDC

Ambient Operating Temperature Range: -40°C to +85°C

Weight: 10.0g

RoHS Compliant: Yes

Termination: PCB Pin Mounting


Dimensions
JQC-3FF-24 - SPDT 12V 5A PCB Relay Dimensions

Datasheet - JQC-3FF-24 Relay Datasheet
