PIC16F87-I/P - PIC16F87 Flash 18-pin 4kB Microcontroller with USART - Buy PIC16F87-I/P

Photograph
PIC16F87-I/P - PIC16F87 Flash 18-pin 4kB Microcontroller with USART
Features

arrowHigh-Performance RISC CPU

    - Only 35 single word instructions to learn

    - All instructions are single cycle (1µs) except for program branches

    - Operating speed: DC - 20MHz clock input

    - 4 kBytes Flash Program Memory

    - 368 Byte RAM Data Memory

    - 256 Byte EEPROM Data Memory

    - In-circuit Serial Programming

arrowPeripheral Features

    - Two 8-bit timer/counter with 8-bit programmable prescalar

    - One 16 bit timer/counter

    - High current source/sink for direct LED drive

    - Watchdog Timer (WDT) with Separate RC Oscillator

    - Capture, Compare, PWM Module with 16-bit Resolution

    - Synchronous Serial Port with SPI and I²:c

    - Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART) for RS-232

    - Dual Analog Comparator Module

arrowSpecial Microcontroller Features

    - Power-On Reset

    - Power-up Timer (PWRT) and Oscillator Start-Up Timer (OST)

    - 1,000 erase/write cycls Enhanced Flash Program Memory

    - 1,000,000 typical erase/write cycles EEPROM Data Memory

    - Selectable Oscillator Options

arrowCMOS Technology

    - Low power, high speed CMOS FLASH technology

    - Fully Static Design

    - Low Power Consumption

arrowI/O and Packages

    - 16 I/O pins with individual direction control

    - 18-pin DIP


Pin Description
Pin Number Description
1 RA2/AN2/CVREF - Port A
2 RA3/AN3/C1OUT - Port A
3 RA4/T0CKI/C2OUT - Port A
4 RA5/MCLR/VPP - Port A
5 Vss - Ground
6 RB0/INT/CCP1 - Port B
7 RB1/SDI/SDA - Port B
8 RB2/SDO/RX/DT - Port B
9 RB3/PGM/ACCP1 - Port B
10 RB4/SCK/SCL - Port B
11 RB5/SS/TX/CK - Port B
12 RB6/PGC/P1OSO/TICKI - Port B
13 RB7/PGD/T1OSO/T1CKI - Port B
14 VDD - Positive Power Supply
15 RA6/OSC2/CLKO - Port A
16 RA7/OSC1/CLKI - Port A
17 RA0/AN0 - Port A
18 RA1/AN1 - Port A

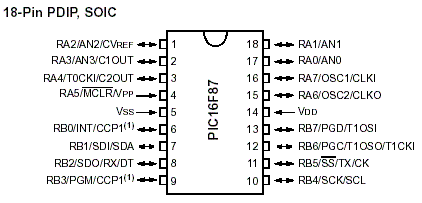

Pin Layout
PIC16F87 Pin Layout

Dimensional Drawing
PDIP18 Dimension Drawing

Technical Data

Data Sheet

Microchip - Data Sheet for PIC16F87 Datasheet

Application Notes

Microchip - Application Notes for PIC16F87 Datasheet
