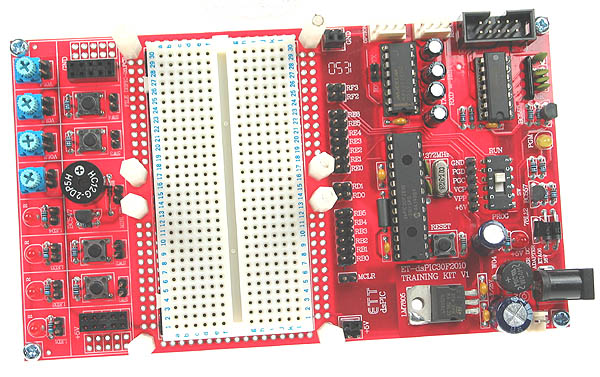

dsPIC30F2010 Development Board

Experience the power of the new dsPIC® range from Microchip, with our inexpensive, easy to use dsPIC30F2010 Development Board. The exciting new range of dsPIC® parts from Microchip feature a powerful 16-bit Digital Signal Controller. This controller is designed for speed, with high instruction throughput, most instructions are performed in a single cycle, including 16-bit multiplication and looping instructions. The new dsPIC® range of high-performance microcontrollers open up a wide range of new applications, where a high degree of computation is required, combined with low power consumption, in a compact inexpensive microcontroller.

Our dsPIC30F2010 Development Board, combines the power of this microcontroller with a number of useful features for testing and developing your code for this new microcontroller. The board comes complete with the Microchip dsPIC30F2010 microcontroller pre-installed, together with the necessary crystal and power supply components, for a ready-to-run solution. Simply connect the power and download your program, using the easy to use programming interface and software, and your ready to start exploring the 16-bit world of DSP's.

Programs can be downloaded or updated directly to the microcontroller using the in-circuit programming interface. The standard 6-pin Microchip in-circuit programming connections are provided on the board, together with a RS232 connection for computer interfacing. Pushbuttons and LED's are also included on our development board for testing and developing your code. Together with a number of trimpots for analog input and a speaker for sound output. A large breadboard area is provided for easy addition of test circuits and further program development.

This board is the ideal starting point for exploring the new 16-bit world of Digital Signal Controllers, featuring high performance in a miniature compact package. Our dsPIC30F2010 Development Board, will get you started with an inexpensive, ready-to-run solution, which is ideal for the student or hobbyist.

Note: dsPIC is a registered trademark of Microchip Corporation


Part Code: DSPIC30F2010BRD


Features

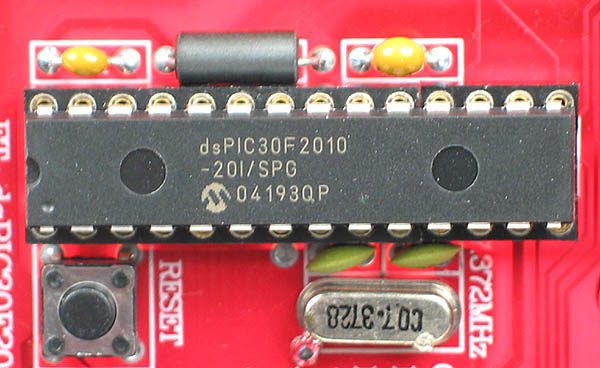

  • Includes Microchip dsPIC30F2010 Microcontroller
  • All necessary power supply components are pre-installed and board is ready-to-run
  • Direct In-Circuit Program Download with RS-232 Connection or standard PIC 6-pin In-Circuit Programming Connection
  • 4 Pushbuttons with Speaker On-Board
  • 4 Variable Trimpots for Adjustable Analogue Inputs
  • 4 Red Test LED's
  • Large Breadboard
  • RS232 Connection
  • Selectable PROG-RUN Switch
  • Power and Programming LED
  • Ideal Training and Development Board for the dsPIC30F2010 Microcontroller


Great Value at only $44.90
