Microchip Launches New LoRa® Module Designed for North American Low-Power Wide-Area Networks

The New RN2903 Wireless Modem is Already FCC Certified and Provides An Easy Ready-to-Run Solution

Microchip have released an addition to its LoRa® technology product line. The new RN2903 wireless modem works with North American Low-Power Wide-Area Networks (LPWAN) and is FCC certified for use in the 915 MHz band. The RN2903 modem is designed to be an efficient way to add long-range LoRaWAN™ network capability to any embedded design by integrating a proven LoRaWAN protocol stack running on a low-power PIC® microcontroller, along with the LoRa radio and embedded antenna matching circuit.

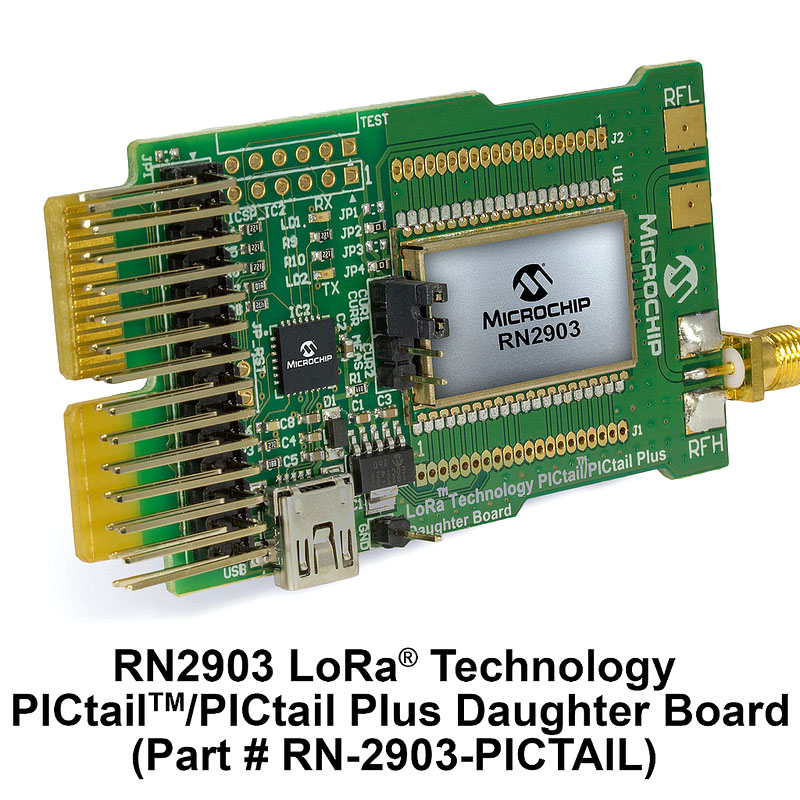

Click for Larger Image - Microchip Launches New LoRa® Module Designed for North American Low-Power Wide-Area Networks Driven by the LoRa Alliance, LoRa technology is able to achieve a range of up to 10 miles and 10-year battery life. The technology targets low data rates and low-duty-cycle applications such as energy metering, location tracking, utility infrastructure monitoring and control, smart city and agriculture. Although predominantly used for the uplink of sensor data, bidirectional communications allow real-time acknowledgement of mission-critical data and downlink control of remote actuator nodes.

“LoRaWAN is already the dominant LPWAN technology choice in Europe, with numerous private and public network deployments,” said Steve Caldwell, vice president of Microchip's Wireless Solutions Group. “Until today, the rollout of LoRaWAN in the USA has been hampered only by the lack of credible end-node solutions - which the cost-optimized RN2903 from Microchip solves. Microchip was the first to pass LoRa Alliance certification and we plan to continue to be an innovator in this space and a proud member of the LoRa Alliance.”

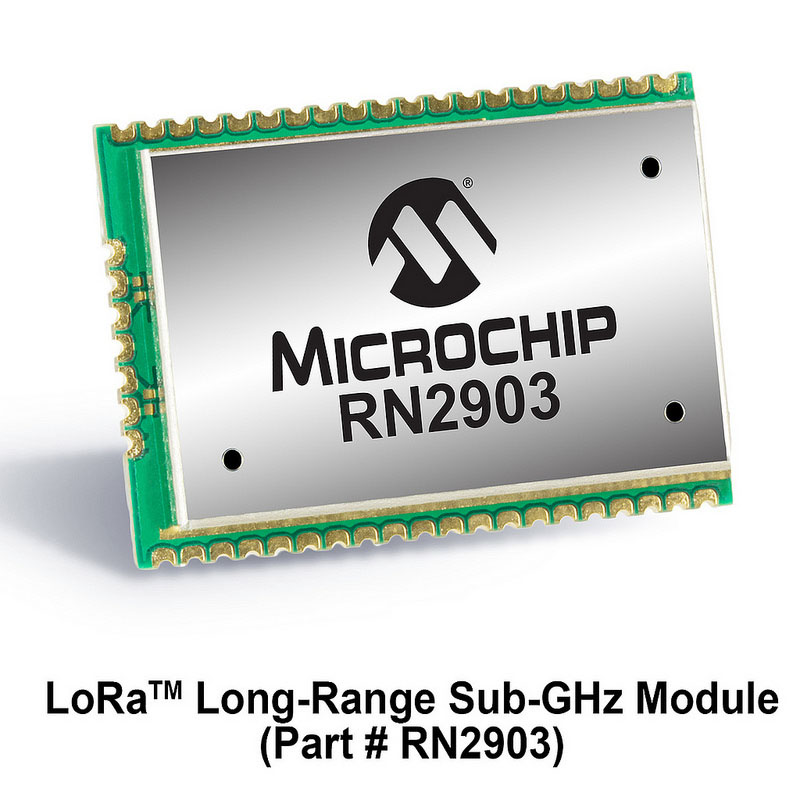

Click for Larger Image - Microchip LoRa Module The RN2903 is designed to be easy to adopt, which minimizes research and development investment and speeds time to market. The simple ASCII-over-UART interface can be controlled by any embedded system, even down to a tiny, eight-pin PIC12 MCU, and the embedded antenna matching circuits and FCC modular certification require minimal radio expertise.

Features of the RN2903 Wireless Modem

  • On-board LoRaWAN Class A and Class C protocol stack
  • ASCII command interface over UART
  • Compact form factor 17.8 x 26.7 x 3 mm
  • Castellated SMT pads for easy and reliable PCB mounting
  • Device Firmware Upgrade (DFU) over UART
  • 14 GPIO for control, status, and ADC
  • Highly integrated module with MCU, crystal, EUI-64 Node Identity Serial EEPROM, Radio transceiver with analog front end, and matching circuitry
  • Environmentally friendly, RoHS compliant
  • FCC and IC Certified
  • ANATEL Certified

More information on the RN2903 Wireless Modem can be found on the Microchip Web site at Microchip RN2903 product page

Note: The Microchip name and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A and other countries. All other trademarks mentioned herein are the property of their respective companies.

The company's Web site address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation - Release Date, 29th February, 2016]
