New AVR Microcontrollers With Core Independent Peripherals

Microchip's New tinyAVR’s include a Peripheral Touch Controller,
Custom Logic Blocks, 10-bit ADC and Operating Voltages Down to 1.8V

Microchip® have released a new generation of 8-bit tinyAVR MCUs. The four new devices range from 14 to 24 pins and 4 KB to 8 KB of Flash and are the first tinyAVR® microcontrollers to feature Core Independent Peripherals (CIPs). The new devices will be supported by Atmel START, an innovative online tool for intuitive, graphical configuration of embedded software projects.

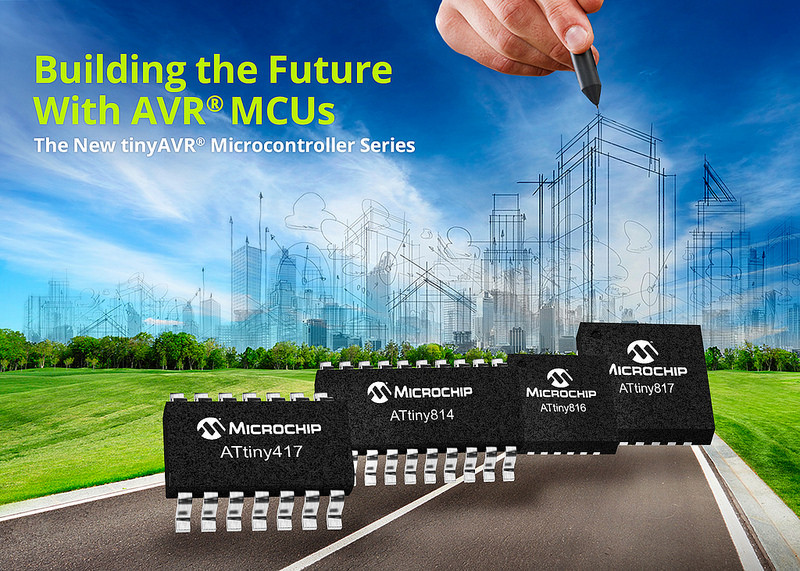

Click for Larger Image - Microchip Releases New AVR Microcontrollers With Core Independent Peripherals “This announcement is very important to Microchip as it represents the coming together of the two most powerful 8-bit MCU brands under one roof,” said Steve Sanghi, CEO and Chairman of the Board of Microchip Technology Inc. “Customers love both PIC® and AVR® MCUs and Microchip is re-energizing new product development to not only continue to support, but to grow the esteemed AVR portfolio.”

The new ATtiny817/816/814/417 devices provide all the right features to help drive product innovation including small, low pin count and feature-rich packaging in 4 KB or 8 KB of Flash memory. Other integrated features include: a CIP called Peripheral Touch Controller (PTC); Event System for peripheral co-operation; custom programmable logic blocks; self-programming for firmware upgrades; non-volatile data storage; 20 MHz internal oscillator; high-speed serial communication with USART; operating voltages ranging from 1.8V to 5.5V; 10-bit ADC with internal voltage references; and sleep currents at less than 100 nA in power down mode with SRAM retention.

“As the number one provider of 8-bit MCUs with our broad portfolio of PIC, AVR and 8051 MCU cores, we are committed to providing our customers with more products that can help differentiate their designs,” said Steve Drehobl, vice president of Microchip’s MCU8 division. “By adding innovative capabilities like Core Independent Peripherals, interconnected analog and intuitive graphic design support that have been available on PIC MCUs for some time, we are continuing to provide our AVR MCU customers with the right tools to innovate and get to market fast.”

CIPs allow the peripherals to operate independently of the core, including serial communication and analog peripherals. Together with the Event System, that allows peripherals to communicate without using the CPU, applications can be optimized at a system level. This lowers power consumption and increases throughput and system reliability.

Accompanying the release of the four new devices, Microchip is adding support for the new AVR family in Atmel START, the online tool to configure software components and tailor embedded applications. This tool is free of charge and offers an optimized framework that allows the user to focus on adding differentiating features to their application.

Technical Specifications of the ATtiny817 Microcontroller

  • 8 KB Flash Program Memory
  • 512 Bytes Data SRAM
  • 128 Bytes Data EEPROM
  • Hardware Multiplier
  • Power-On reset
  • Brown-Out Detection
  • Watch Dog Timer (WWDT)
  • Single pin programming and debugging
  • 12 Channel 10-bit ADC
  • 8-bit Digital to Analog Converter
  • 1 x 12-bit Timer
  • 2 x 16-bit Timers
  • Peripheral Touch Controller
  • USART, SPI, and I2C

More information on the ATtiny817 and the Core Independent AVR range, can be found on the Microchip website at Microchip ATtiny817 product page

Note: The Microchip name and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A and other countries. All other trademarks mentioned herein are the property of their respective companies.

The Microchip website address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation - Release Date, 8th November, 2016]
