DC Motor Mini Board

DC Motor Mini Board

DC Motor Mini Board

DC Motor Mini Board

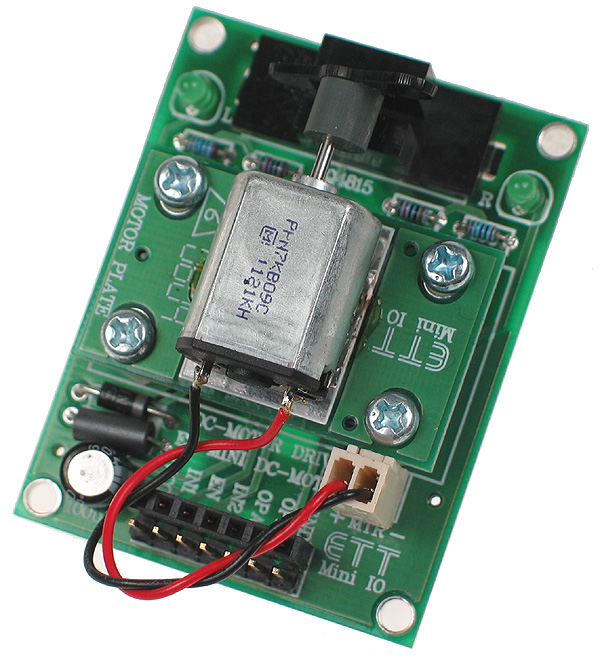

Our DC Motor Mini Board is ideal for learning how to control and monitor DC motors. This compact, easy to use mini board, includes a DC Motor together with a standard L293 control IC plus photo-interrupter for measuring motor speed.

Control is easily achieved using a 5 pin control connection. Refer to the L293 datasheet for more information on controlling this unit. Easy to connect standard male and female header pins are included on the board for interfacing to your development board. Together with direction LED's for indication of left or right direction.

If your interested in robotics or mechanical control systems, this compact mini board is the ideal place to start. Learn how to control and monitor a miniature DC motor, quickly and easily with this inexpensive DC Motor Mini Board.


Part Code: MINIDCMOTOR


Features

  • Reliable Performance DC Motor
  • Includes L293 IC on-board for controlling direction
  • Opto Interrupter included for measuring speed
  • Direction LEDs
  • Easy to interface Control Connection
  • Compact Board with Mounting Holes Provided
  • Suitable for use with Arduino Boards and Most Microcontrollers
  • Board Dimensions: 45 x 55 mm

Technical Data
