PIC18F2455 28-pin 24kB Microcontroller Datasheet

Photograph
PIC18F2455-I/SP - PIC18F2455 Flash 28-pin 24kB Microcontroller

Product Details

The Microchip PIC18F2455 Microcontroller is an advanced 28-pin 8-bit PIC Microcontroller featuring nanoWatt technology for reduced power consumption. The microcontroller has 24 kBytes of Flash Program Memory and a Ten Channel 10-bit Accuracy A/D Converter. The PIC18F2455 microcontroller features a USB V2.0 Compliant module for USB communication with a PC, up to 12 Mb/sec. The device has a total of 24 I/O pins available with individual direction control and are suitable for directly driving LEDs.

Features

  • High-Performance RISC CPU
    • - Source code compatible with the PIC16 and PIC17 instruction sets
    • - USB V2.0 Compliant with up to 12 Mb/s at Full Speed
    • - DC - 48 MHz External Clock Modes
    • - 16-bit wide instructions, 8-bit wide data path
    • - Priority levels for interrupts
    • - 8 x 8 Single Cycle Hardware Multiplier
    • - 24 kBytes Flash Program Memory
    • - 2048 Byte RAM Data Memory
    • - 256 Byte RAM Data Memory
  • Peripheral Features
    • - High current sink/source 25mA/25mA
    • - Three 16-bit timer/counter
    • - One 8-bit timer/counter with prescaler
    • - Two Capture/Compare Modules
    • - Capture 16-bit, max. resolution 6.25ns(TCY/16)
    • - Compare 16-bit, max. resolution 100ns
    • - 3-wire SPI (supports all 4 SPI modes)
    • - I²C Master and Slave mode
    • - Addressable USART Module supports RS-485 and RS-232
    • - Ten Channel 10-bit Analog-to-Digital Converter
  • Special Microcontroller Features
    • - Power-On Reset
    • - Power-up Timer (PWRT) and Oscillator Start-Up Timer (OST)
    • - 1,000 erase/write cycles Enhanced Flash Program Memory
    • - 1,000,000 typical erase/write cycles EEPROM Data Memory
    • - Watchdog Timer (WDT) with its own On-Chip RC oscillator
    • - Programmable Code Protection
    • - Power Saving SLEEP mode
    • - Secondary Oscillator (32kHz) clock input
    • - Single supply 5V In-circuit Serial Programming via two pins
    • - In-Circuit Debug (ICD)
  • CMOS Technology
    • - Low power, high speed CMOS FLASH technology
    • - Fully Static Design
    • - Wide Operating Voltage Range (2.0V to 5.5V)
  • I/O and Packages
    • - 24 I/O pins with individual direction control
    • - 28-pin DIP

Pin Layout
PIC18F2455 Pin Layout

Pin Description
Pin Number Description
1 MCLR/VPP/RE3 - Master Clear Reset/Port E
2 RA0/AN0 - Port A
3 RA1/AN1 - Port A
4 RA2/AN2/VREF-/CVREF - Port A
5 RA3/AN3/VREF+ - Port A
6 RA4/T0CKI/C1OUT/RCV - Port A
7 RA5/AN4/SS/LVDIN/C2OUT - Port A
8 Vss - Ground
9 OSC1/CLKI - Oscillator/Clock Input
10 OSC2/CLKO/RA6 - Oscillator/Port A
11 RC0/T1OSO/T13CKI - Port C
12 RC1/T1OSI/CCP2/UOE - Port C
13 RC2/CCP1 - Port C
14 VUSB - USB Voltage Regulator
15 RC4/D-/VM - Port C/USB Data
16 RC5/D+/VP - Port C/USB Data
17 RC6/TX/CK - Port C
18 RC7/RX/DT/SDO - Port C
19 Vss - Ground
20 Vdd - Positive Power Supply
21 RB0/AN12/INT0/FLT0/SDI/SDA - Port B
22 RB1/AN10/INT1/SCK/SCL - Port B
23 RB2/AN8/INT2/VMO - Port B
24 RB3/AN9/CCP2/VPO - Port B
25 RB4/AN11/KBI0 - Port B
26 RB5/KBI1/PGM - Port B
27 RB6/KBI2/PGC - Port B
28 RB7/KBI3/PGD - Port B

Dimensional Drawing

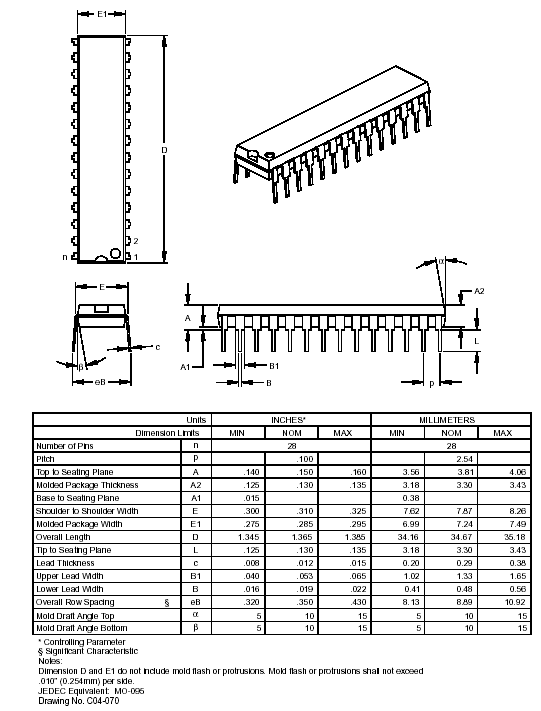

PIC18F2455 IC Dimensional Drawing
