PIC16C54 - PIC16C54 EEPROM 18-pin 512Byte Microcontroller
| Photograph |
|
| Features |
- High-Performance RISC CPU
- - Only 33 single word instructions to learn
- - All instructions are single cycle (1µs) except for program branches
- - Operating speed: DC - 20MHz clock input
- - 512 Byte EPROM Program Memory
- - 25 Byte RAM Data Memory
- Peripheral Features
- - One 8-bit timer/counter(TMR0) with 8-bit programmable prescalar
- - High current source/sink for direct LED drive
- - Watchdog Timer (WDT) with Separate RC Oscillator
- Special Microcontroller Features
- - Power-On Reset
- - Power-up Timer (PWRT) and Oscillator Start-Up Timer (OST)
- - Programmable Code Protection
- - Power Saving Sleep Mode
- - Selectable Oscillator Options
- CMOS Technology
- - Low power, high speed CMOS FLASH technology
- - Fully Static Design
- - Low Power Consumption
- I/O and Packages
- - 12 I/O pins with individual direction control
- - 18 pin DIP
|

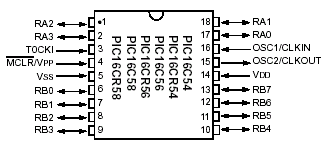

| Pin Layout |
|
| Pin Description |
|
Pin Number
|
Description
|
|
1
|
RA2 - Port A
|
|
2
|
RA3 - Port A
|
|
3
|
TOCK1
|
|
4
|
MCLR/Vpp - Master Clear/Programming Voltage
|
|
5
|
Vss - Ground
|
|
6
|
RB0 - Port B
|
|
7
|
RB1 - Port B
|
|
8
|
RB2 - Port B
|
|
9
|
RB3 - Port B
|
|
10
|
RB4 - Port B
|
|
11
|
RB5 - Port B
|
|
12
|
RB6 - Port B
|
|
13
|
RB7 - Port B
|
|
14
|
Vdd - Positive Power Supply
|
|
15
|
OSC2/CLKOUT - Oscillator
|
|
16
|
OSC1/CLKIN - Oscillator
|
|
17
|
RA0 - Port A
|
|
18
|
RA1 - Port A
|
|
| Dimensional Drawing |
|
