20k ohm Sealed Miniature Vertical Trimpot Technical Data - Buy TRIMSV20K

Photograph
TRIMSV20K - 20k ohm Sealed Miniature Vertical Trimpot

Features

arrowSingle Turn

arrowLinear Response Curve

arrowSealed Case

arrowOperating Temperature: -25°C to +85°C

arrowPower Rating: 100mW

arrowRoHS Compliant


Dimensions

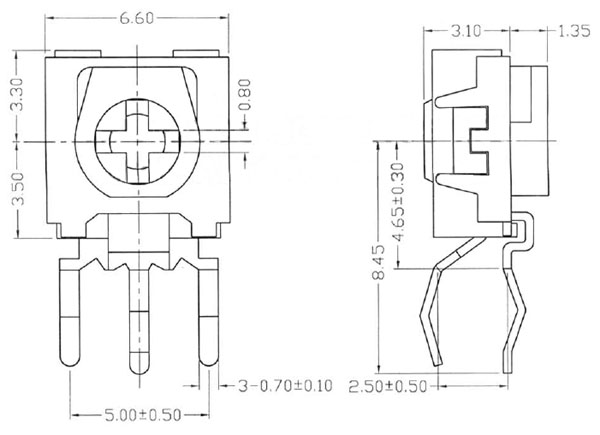

TRIMSV20K - 20k ohm Sealed Miniature Vertical Trimpot Dimensions

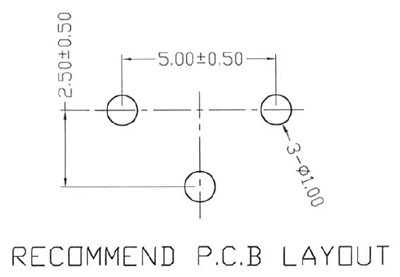

TRIMSV20K - 20k ohm Sealed Miniature Vertical Trimpot PCB Layout
TRIMSV20K - 20k ohm Sealed Miniature Vertical Trimpot Circuit

Dimensions in mm
