TDA1554Q - TDA1554Q Four Amplifier IC - Buy TDA1554Q

Photograph
TDA1554Q - TDA1554Q Four Amplifier IC
Features

Requires Very Few External Components

Flexibility in Use - Quad Single-ended or Stereo BTL

High Output Power

Low Offset Voltage at Outputs

Good Ripple Rejection

Fixed Gains

Mute/Stand-by Switch

Load Dump Protection

AC and DC short-circuit-safe to ground and Vp

Thermally Protected

Reverse Polarity Safe

Capability to Handle High Energy on Outputs

Protected Against Electrostatic Discharge

No switch-on/switch-off plop

Low Thermal Resistance

Flexible Leads


Pin Description
Pin Number Description
1 Non-Inverting Input 1
2 Inverting Input 1
3 Ground
4 Supply Voltage Ripple Rejection
5 Positive Supply Voltage 1
6 Positive Supply Voltage 1
7 Power Ground 1
8 Output 2
9 Not Connected
10 Output 3
11 Power Ground 2
12 Output 4
13 Positive Supply Voltage 2
14 Mute/Stand-by Switch
15 Not Connected
16 Inverting Input 2
17 Non-Inverting Input 2

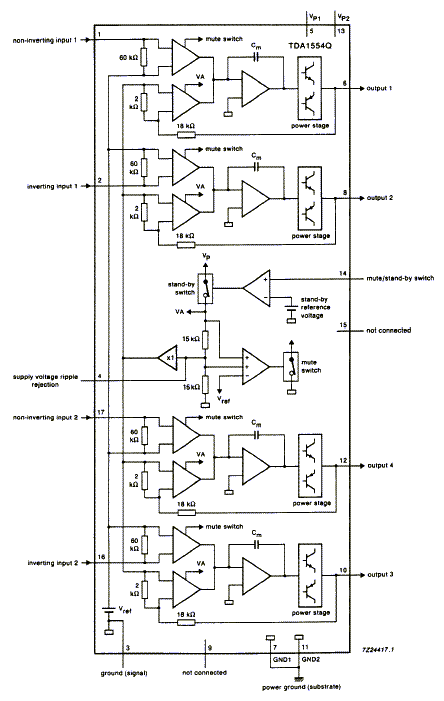

Pin Layout
Philips TDA1554Q Pin Layout

Dimensional Drawing
Philips - SIL Dimension Drawing

Technical Data

Data Sheet

Philips - Data Sheet for TDA1554Q TDA1554Q Datasheet

Application Notes
