Click for Larger Image - Power Supply Mini Board

5V High Power Supply Mini Board

The new +5V High Power Supply Mini Board is designed for applications requiring a large current supply at a stable +5V. This unit is capable of delivering up to 3A and utilizes a very efficient switching regulator, the LM2576, to provide a very stable +5V over a wide range of current loads.

This board is suitable for a wide range of dc input voltage from 9 to 35V dc, and solid pcb terminals are provided for connection. The LM2576 regulator is mounted on a heavy duty heatsink with excellent heat dissipation, ensuring a long life. The board also incorporates a high current low-loss inductor mounted on a heavy duty printed circuit board. A power on LED is also provided for indication.

The 5V High Power Supply Mini Board is the ideal solution for providing a highly efficient +5V supply for applications requiring a large amount of current at a very stable voltage. The unit can be used with our development boards, mini boards or in a control system.

Part Code: MINIPOWER5V3A


Features

  • Incorporates the High Efficiency LM2576T Switching Regulator
  • High Current 3A 5V DC Output
  • Suitable for 9 - 35V DC Input
  • Power LED included
  • Heavy Duty Heatsink and High Current Inductor
  • Suitable for use with most +5V Microcontrollers
  • Board Dimensions including Heatsink (LxWxH): 90 x 60 x 25 mm


Order Now for only $14.90

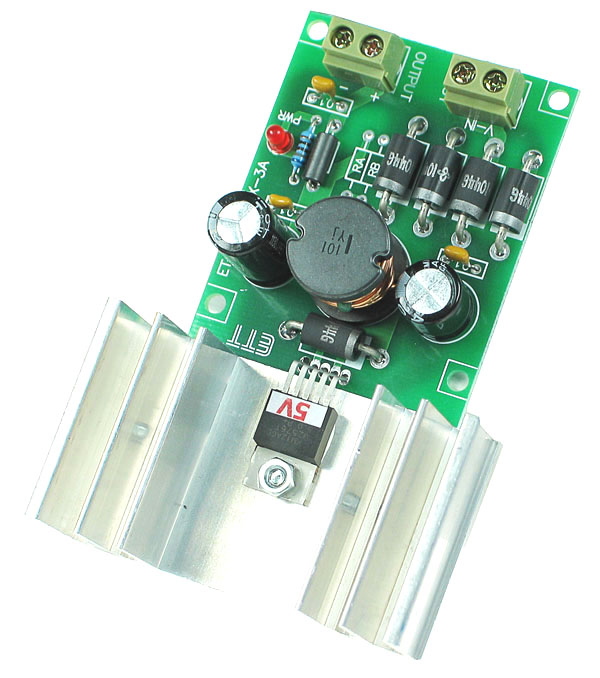

Click for Larger Image - 5V High Power Supply Mini Board

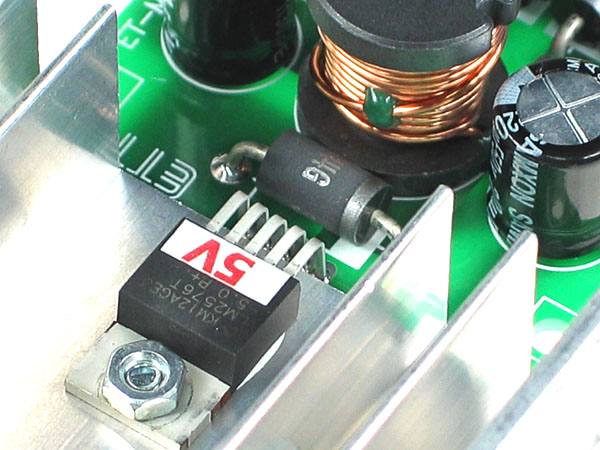

Click for Larger Image - 5V High Power Supply Mini Board
