PIC16C765 - PIC16C765 40-pin 8kB Microcontroller with USB

Photograph

Features
High-Performance RISC CPU - Only 33 single-word instructions to learn - Operating Speed: DC - 24MHz clock input - Direct, indirect and relative addressing modes - 8k Byte Program Memory - 256 Byte RAM Data Memory - 64 Bytes of USB dual port RAM Peripheral Features - USB 1.1 Standard - Watchdog Timer (WDT) with its own on-chip RC Oscillator - One 16-bit Timer/Counter with Prescalar - Three 8-bit Timer/Counters - 8-bit multi-channel Analog-to-Digital Converter - Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) - Parallel Slave Port (PSP) 8-bits wide Special Microcontroller Features - Power-On Reset - Device Reset Timer - Selectable Oscillator Options - Programmable Code Protection - Power-Saving Sleep Mode CMOS Technology - Low power, high speed CMOS FLASH technology - Fully Static Design - Low Power Consumption (<2.0mA @ 5V, 4mA) - Low Power Standby Mode (<0.6µA Current) I/O and Packages - 33 I/O pins with individual direction control - 40-pin DIP

Features

High-Performance RISC CPU
- - Only 33 single-word instructions to learn
- - Operating Speed: DC - 24MHz clock input
- - Direct, indirect and relative addressing modes
- - 8k Byte Program Memory
- - 256 Byte RAM Data Memory
- - 64 Bytes of USB dual port RAM
Peripheral Features
- - USB 1.1 Standard
- - Watchdog Timer (WDT) with its own on-chip RC Oscillator
- - One 16-bit Timer/Counter with Prescalar
- - Three 8-bit Timer/Counters
- - 8-bit multi-channel Analog-to-Digital Converter
- - Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)
- - Parallel Slave Port (PSP) 8-bits wide
Special Microcontroller Features
- - Power-On Reset
- - Device Reset Timer
- - Selectable Oscillator Options
- - Programmable Code Protection
- - Power-Saving Sleep Mode
CMOS Technology
- - Low power, high speed CMOS FLASH technology
- - Fully Static Design
- - Low Power Consumption (<2.0mA @ 5V, 4mA)
- - Low Power Standby Mode (<0.6µA Current)
I/O and Packages
- - 33 I/O pins with individual direction control
- - 40-pin DIP

Pin Layout

Pin Description

Pin Number	Description
1	MCLR/VPP - Master Clear Reset Input
2	RA0/AN0 - Port A
3	RA1/AN1 - Port A
4	RA2/AN2 - Port A
5	RA3/AN3/VREF - Port A
6	RA4/T0CKI - Port A
7	RA5/AN4 - Port A
8	RE0/RD/AN5 - Port E
9	RE1/WR/AN6 - Port E
10	RE2/CS/AN7 - Port E
11	Vdd - Positive Power Supply
12	Vss - Ground
13	OSC1/CLKIN - Oscillator
14	OSC2/CLKOUT - Oscillator
15	RC0/T1OSO/T1CKI - Port C
16	RC1/T1OSI/CCP2 - Port C
17	RC2/CCP1 - Port C
18	VUSB - USB Power Supply
19	RD0/PSP0 - Port D
20	RD1/PSP1 - Port D
21	RD2/PSP2 - Port D
22	RD3/PSP3 - Port D
23	D- - USB Data
24	D+ - USB Data
25	RC6/TX/CK - Port C
26	RC7/RX/DT - Port C
27	RD4/PSP4 - Port D
28	RD5/PSP5 - Port D
29	RD6/PSP6 - Port D
30	RD7/PSP7 - Port D
31	Vss - Ground
32	Vdd - Positive Power Supply
33	RB0/INT - Port B
34	RB1 - Port B
35	RB2 - Port B
36	RB3 - Port B
37	RB4 - Port B
38	RB5 - Port B
39	RB6 - Port B
40	RB7 - Port B

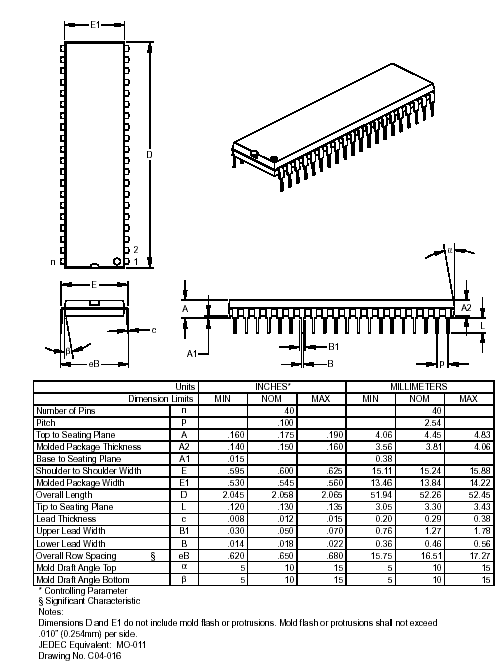

Dimensional Drawing

Technical Data

Datasheet

Microchip Web Site - Datasheet for PIC16C765
