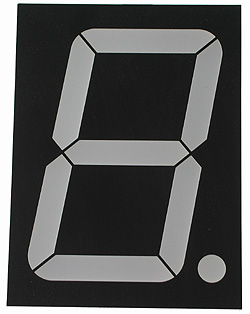

Photograph
7SR40011ES - Single Hi-Red 4.0in CC 7-Segment LED Display

Dimensions and Circuit Diagram

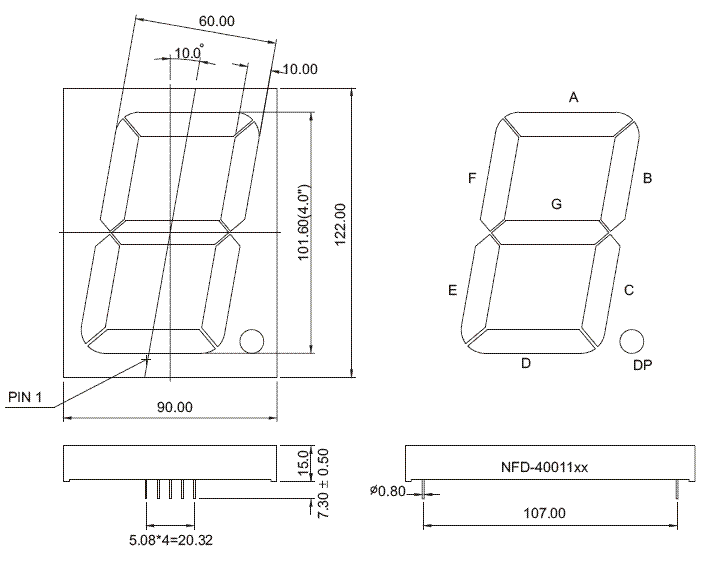

7-Segment LED Display Dimension Drawing

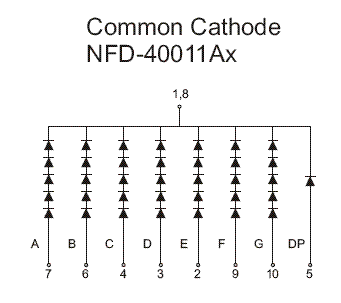

7-Segment LED Display Circuit Diagram
Features

arrowIdeal for Queue Counters and Large Clocks

arrowBright Red LED's

arrowEasy to Read

arrowRoHS Compliant


Specifications
Display

  arrowDigit Size: 4.0"

  arrowMaterial: GaAlAs/GaAs

  arrowEmitted Color: Hi-Red

  arrowDominant Wavelength: 660 nm


Absolute Maximum Ratings

  arrowReverse Voltage(Vr): 5 V

  arrowReverse Leakage Current (Ir): 20 µA

  arrowForward Current (If): 25 mA

  arrowPeak Forward Current (Ifp): 150 mA

  arrowPower Dissipation (P): 60 mW per Segment

  arrowOperating Temperature (Topr): -40°C to +80°C

  arrowStorage Temperature (Ttsg): -40°C to +85°C

  arrowLead Soldering Temperature : 260°C


Electro-Optical Data (@20mA)

  arrowForward Voltage - Typical: 9.25V

  arrowForward Voltage - Maximum: 11.00V

  arrowLuminous Intensity - Minimum per Segment: 288.0 mcd

  arrowLuminous Intensity - Typical per Segment: 432.0 mcd
